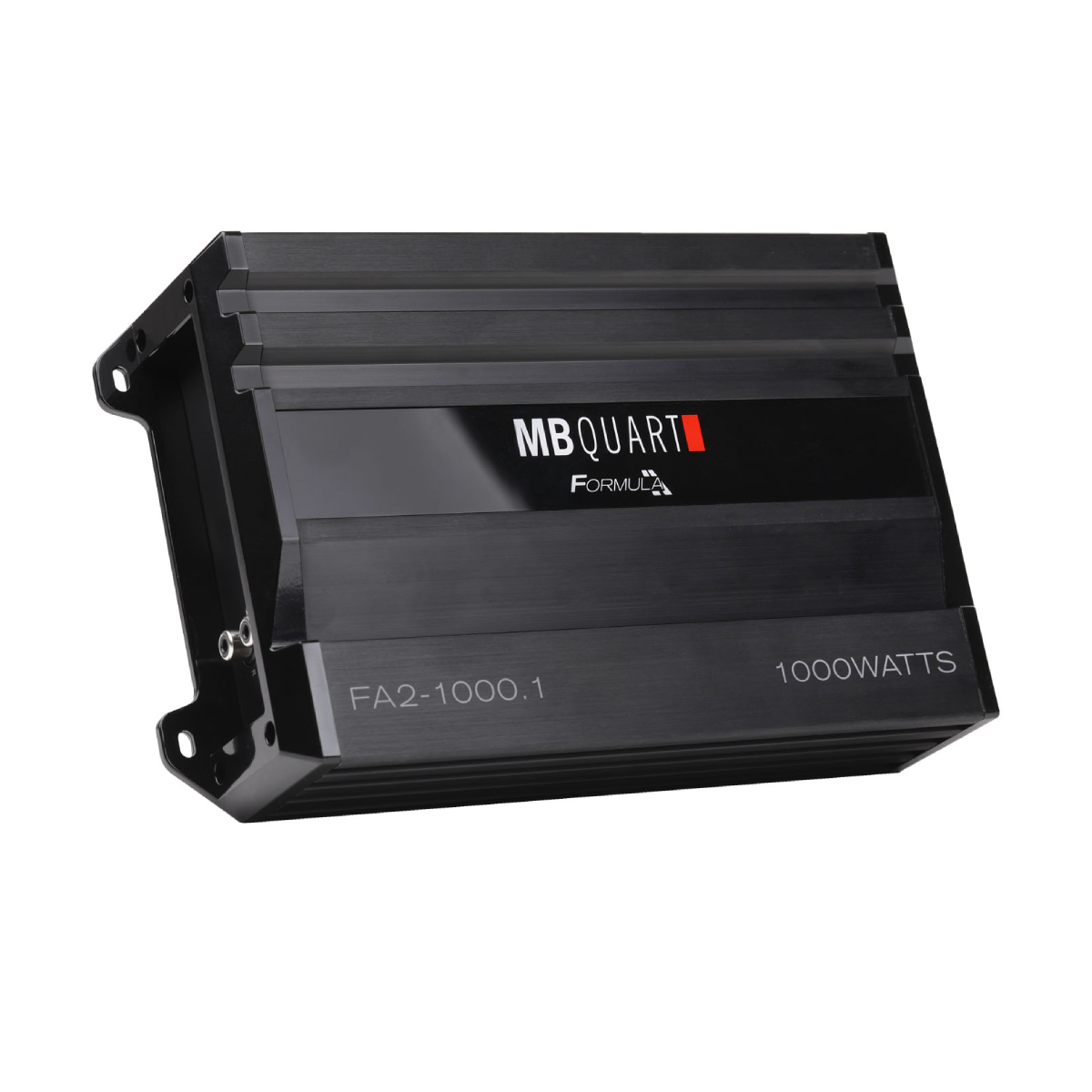

MB QUART 1000 watt Formula Series Amplifier
MB QUART 1000 watt Formula Series Amplifier
SKU:MBQ-FA2-1000.1
Low stock: 1 left
Couldn't load pickup availability
| Colour |
Black |
|---|---|
| Warranty |
2 Years |
| Compatible Vehicles |
Universal |
| Amp Class |
Class D |
| Amp Total Channels |
Mono |
| Amp Max Power (watts) |
1000 |
| Amp Power @ 1 Ohm (ch x watts) |
1 x 1000 |
| Amp Power @ 2 Ohm (ch x watts) |
1 x 500 |
| Amp Power @ 4 Ohm (ch x watts) |
1 x 250 |
| Amp Crossover |
Variable Electronic 12dB Per Octave |
| Amp Variable High Pass Crossover 12dB per Octave |
Switched |
| Amp Variable Low Pass Crossover 12dB per Octave |
40Hz-300Hz |
| Amp Fusing |
External 80A |
| Low Noise Preamplifier Circuit |
Q-Stasis Pre Amplifier Stage: Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion. |

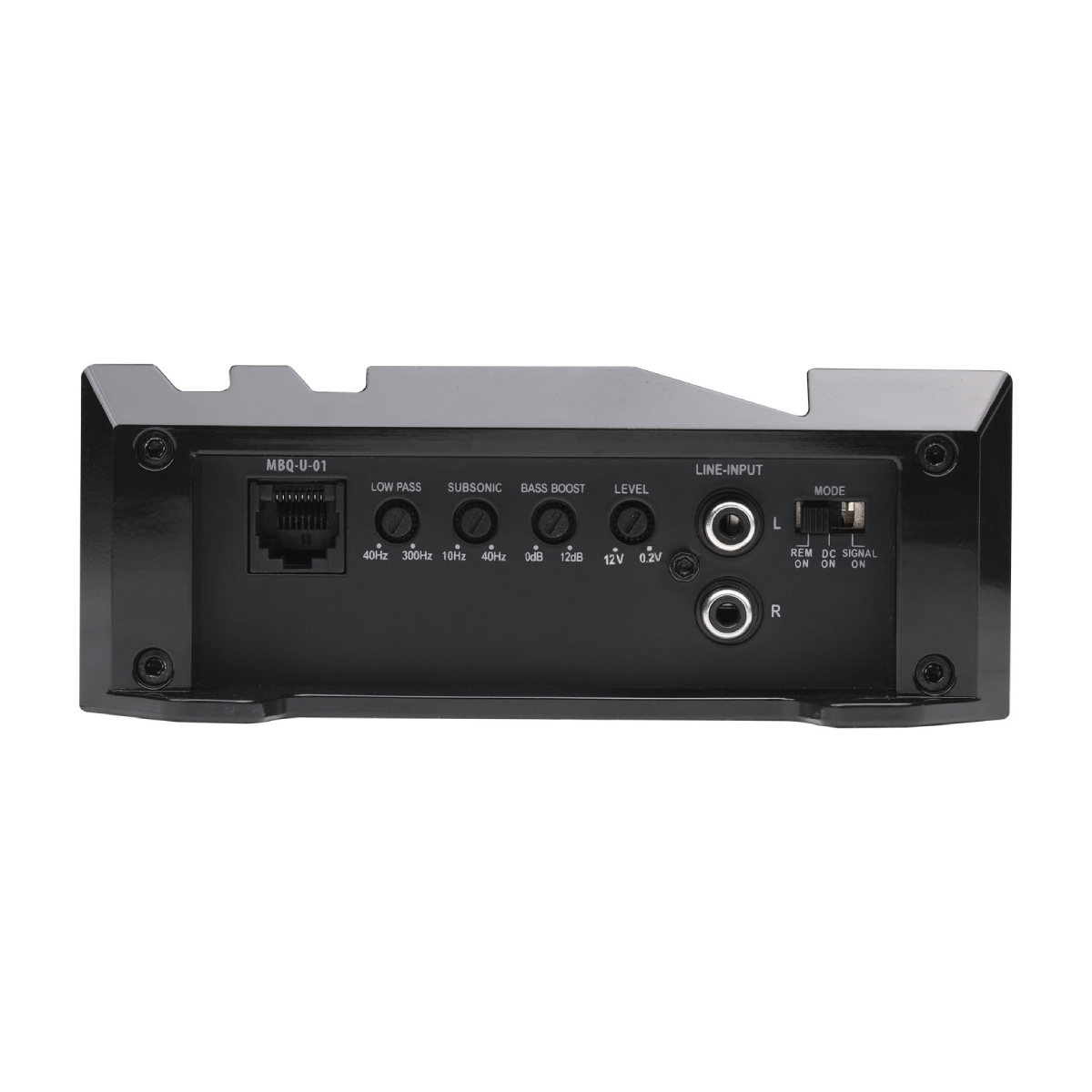

| RCA Inputs |
Nickel Plated: High temperature impact resistant nickel-plated RCA inputs that allow for secure connections and is erosion resistant. |
| High Level Inputs |
DC SIGNAL SENSE: The DC SIGNAL SENSE switch will allow the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn on wire is not needed to turn on the amplifier. This feature can also be turned off. |
| Operation Mode |
Mono only |
| Crossover Type |
Variable electronic crossovers allow for complete control of the sound. |
| Electronic Equalizer |
Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier. |
| Output Device Technology |
FLUID-FETS: MB Quart output devices, FLUID-FETS are painstakingly selected for their ability to efficiently produce power and mimic the sound quality of the highest end home amplifiers. |
| Heat Sink |
Heavy duty heat-sink efficiently moves heat from the MOSFET where it can be cooled. |

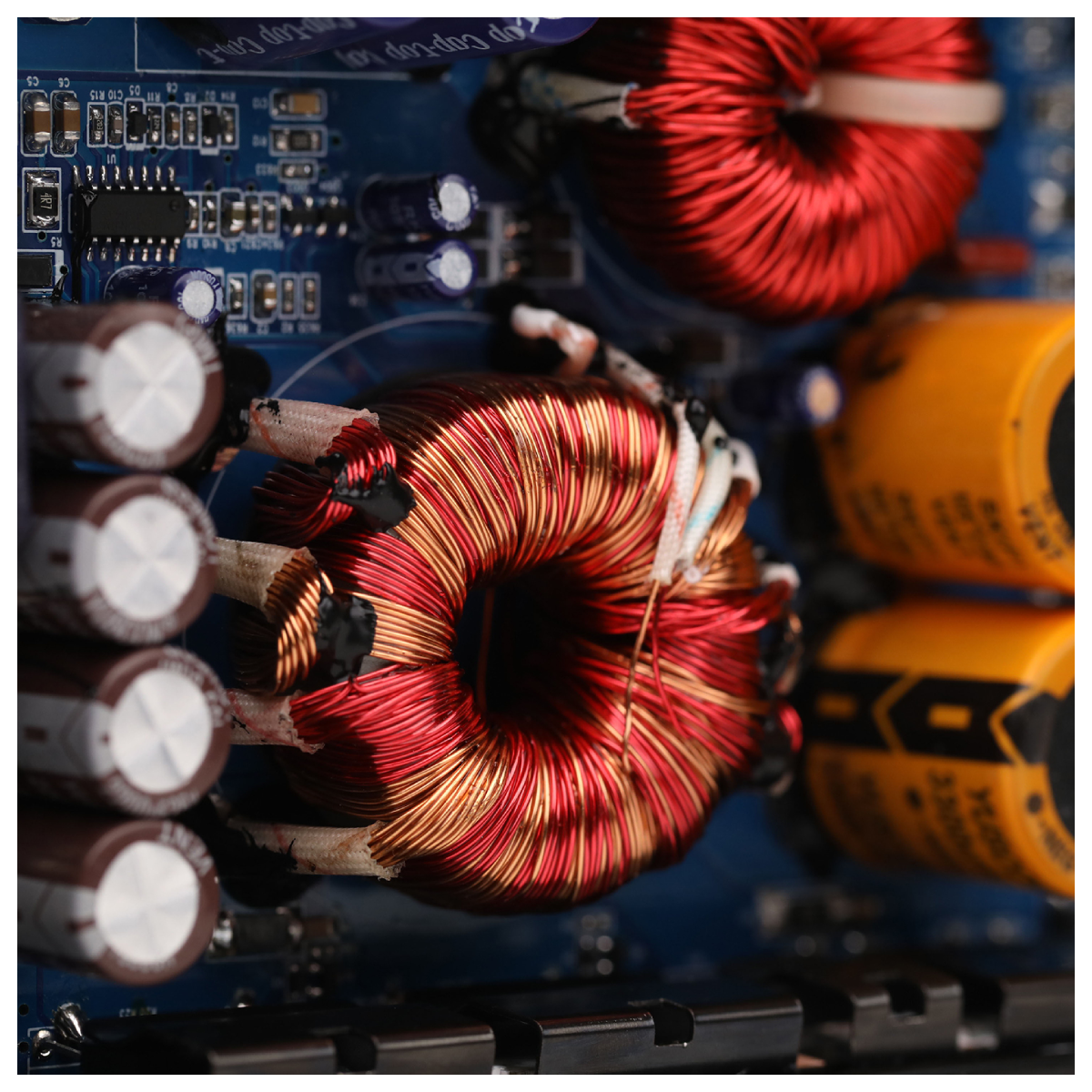

| Power Supply |
Rugged MOSFET Pulse Width Modulation power supply: Allows amplifier to product efficient power without taxing the vehicle electrical system. |

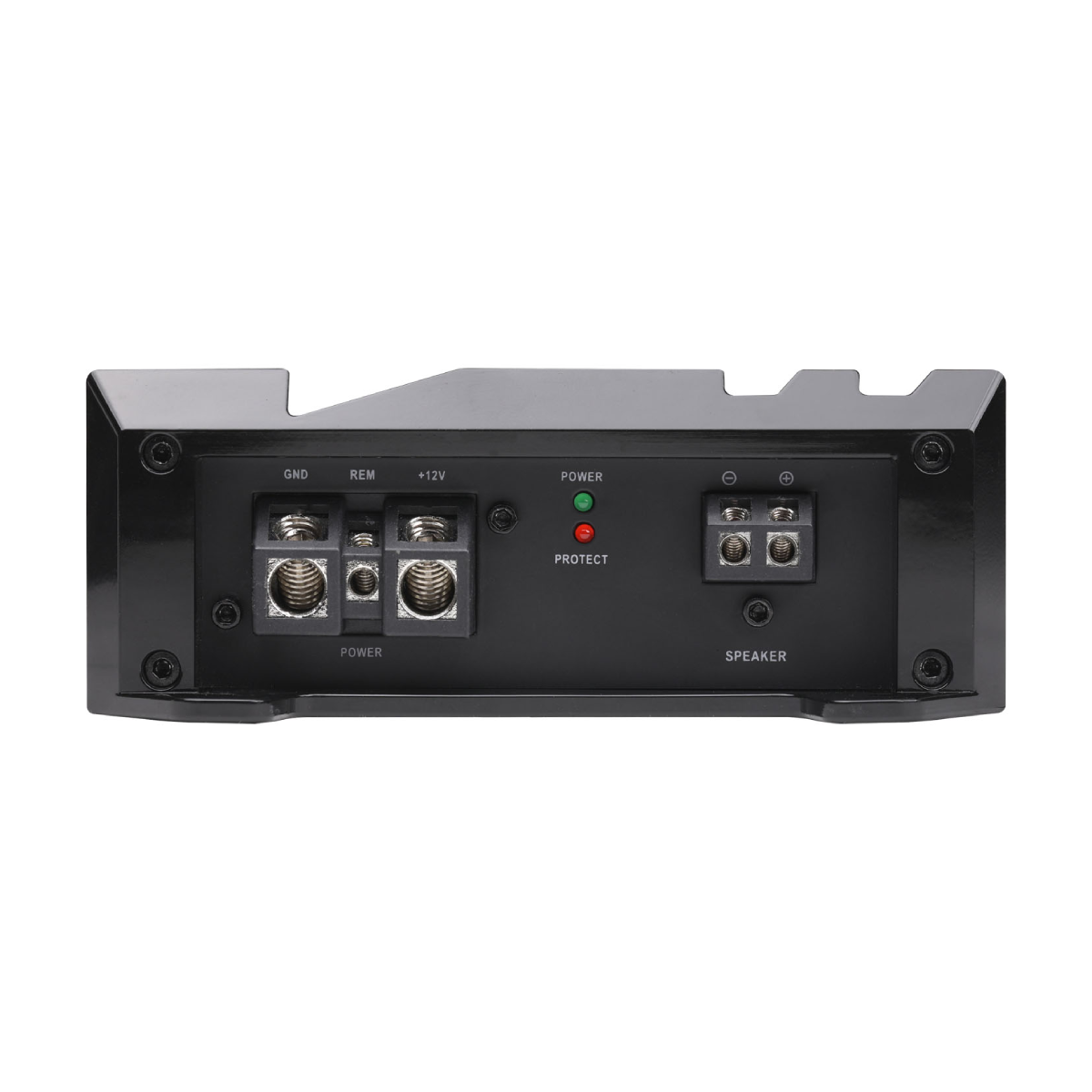

| Output Connections |
Heavy duty connections allow for secure electrical signal to pass into wiring and resist erosion which will add longevity to the amplifier. |
| Connection Type |
Secure connection for all power, ground and speaker connections. |
| LED System Protection Circuitry Diagnostics |
Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel. |
| Bass Remote Included |
Included on mono and 5 channel amplifiers. This allows the driver to make subtle changes to the bass response of the audio system from the seated listening position. |
| Auto Turn-On |
DC SIGNAL SENSE: The DC SIGNAL SENSE switch will allow the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn on wire is not needed to turn on the amplifier. This feature can also be turned off. |
