This 30cm Subwoofer has a robust thermal management system, implemented with an Aluminum Bobbin, Closed Yoke Design, and Advanced Airflow Control. The X-Motif Cap (Injection Molded Polypropylene) controls resonance frequency and cut away unnecessary high frequency sound to deliver powerful, solid bass.

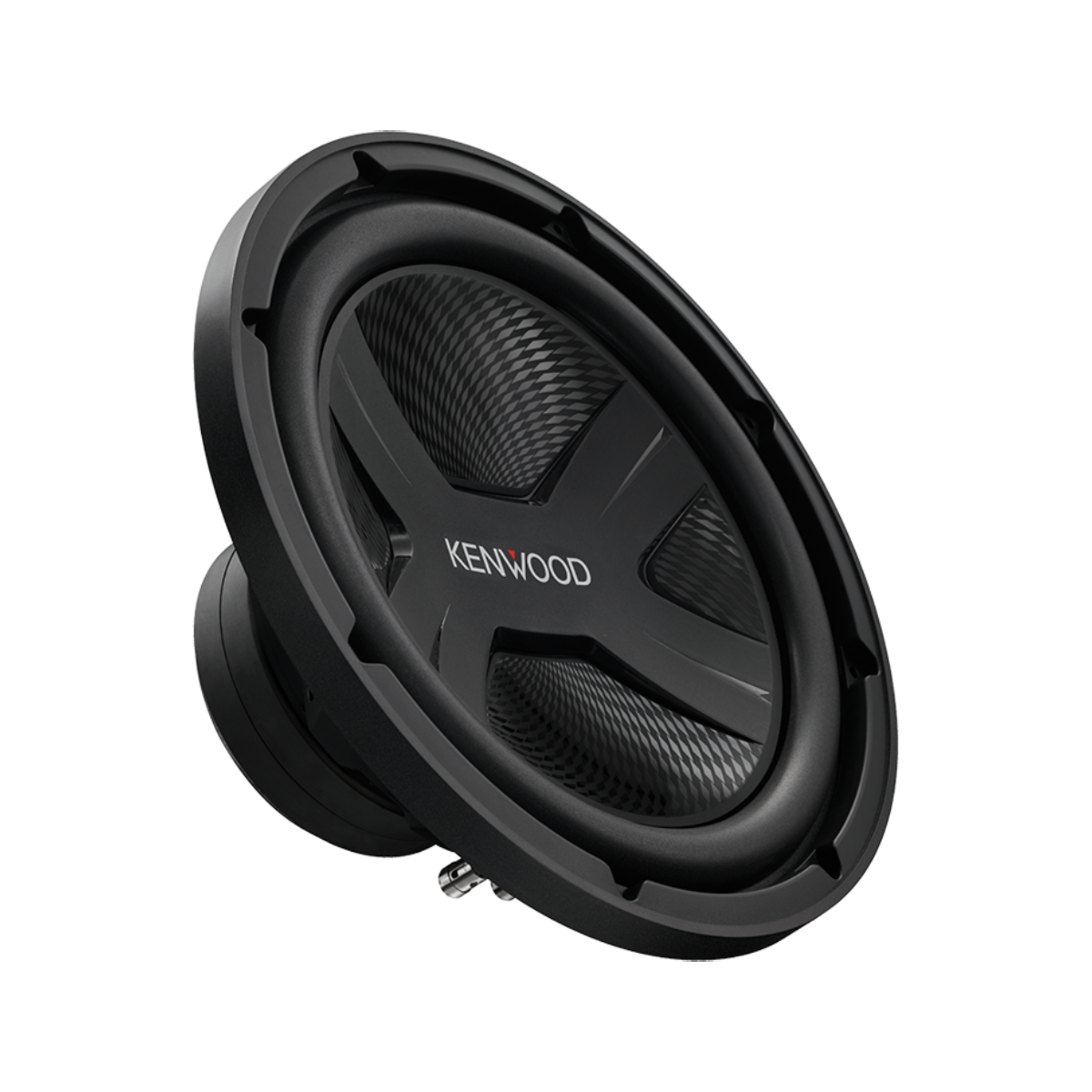

The newly designed X-Motif [A] Cone not only adds strength to the cone but also controls resonance frequency and cuts unnecessary frequency, delivering powerful and solid bass response. The Diamond Array Pattern [B] enhances sound and reduces distortion.

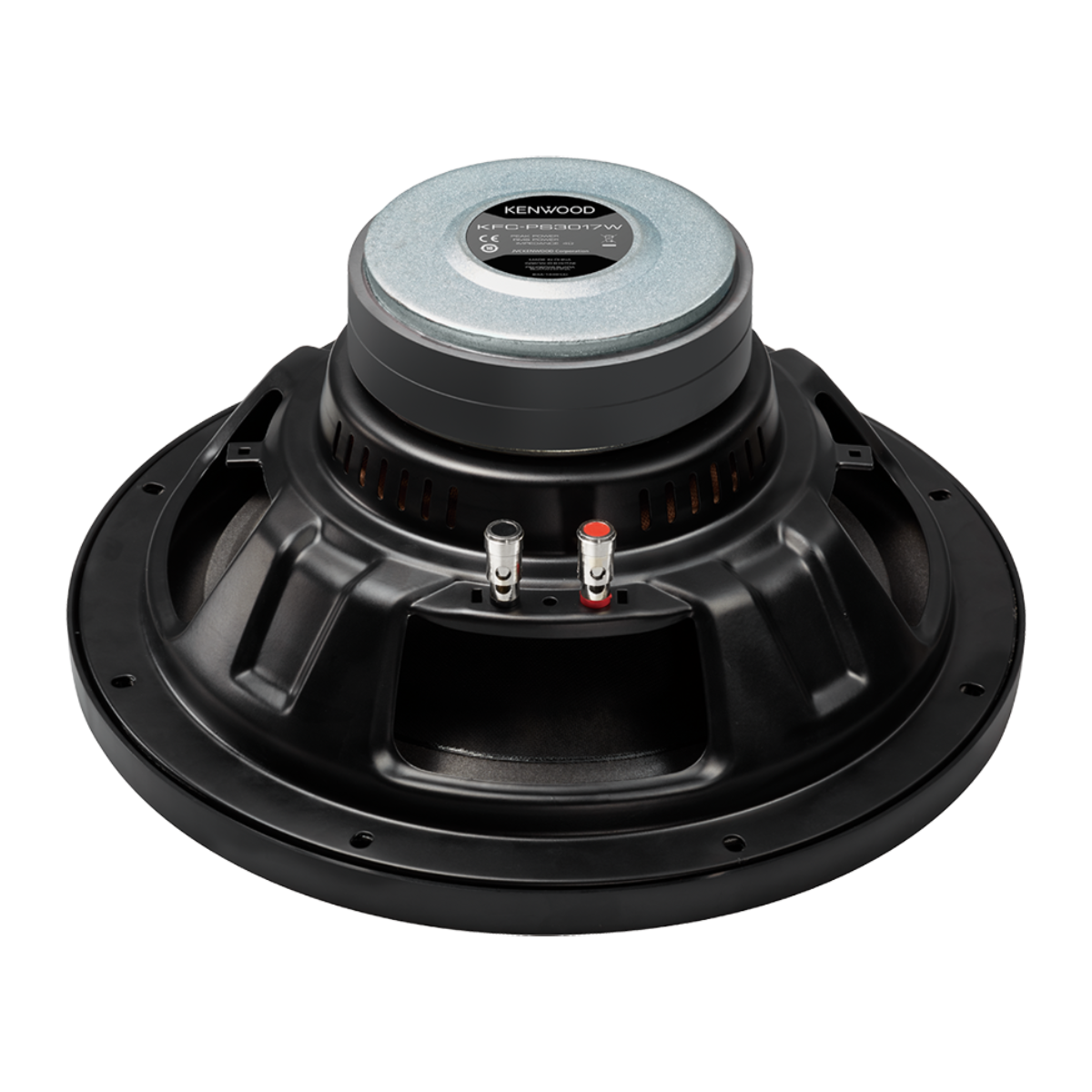

The Close Yoke Design [A] has a strong magnetic circuit with the purpose of reproducing deep low frequencies and optimized heat dissipation.
The combination of the Heat-resistant Alminum Bobbin [B] that provides higher thermal conductivity and the Newly-designed Airflow Control [C] that cools the voice coil when air passes through, ensure the efficiency and longevity of the subwoofer.
The Computer-Optimized Spider has a redesigned shape to equalize the stress to achieve very high levels of linear travel and increase mechanical durability.
Realises a larger magnetic circuit provides higher thermal conductivity.
| Speaker Features | Speaker Size | 300mm |
| Oversized Dimension | Yes | |
| Speaker Cone Design | Diamond-Array pattern | |
| Magnet Type | Ferrit | |
| Voice-coil | single, multi-layer voice coil | |
| Terminals | Push Type | |
| Spider | Stress controlled spider | |
| Bottom-Yoke | Fully closed bottom yoke | |
| Heat dissipation technology | Airflow control | |
| Installation Capabillity | Sealed / Ported |
| Speaker/woofer Specifications | Peak Input Power | 2000W |
| Rated Input Power | 400W | |
| Woofer Cone material | Polypropylene (PP) Cone | |
| Center Cap Type | x-motif cap | |
| Spider Type | Stress controlled Spider | |
| Speaker Basket | Steel | |
| Speaker Surround | Foam | |
| Sensitivity | 85dB/W/m | |
| Frequency Response | 29Hz ~ 300Hz | |
| Speaker Impedance | 4Ω | |
| Dimensions (W x H x D) | 326 x 326 x 155.4mm | |
| Mouting Hole Diameter Ø | 280mm | |
| Mounting Depth | 137mm | |
| Speaker Weight | 4200gr |
| Subwoofer Parameters | Nominal impedance (Z) | 4Ω |
| DC resistance (Re) | 3.7Ω | |
| Resonant frequency (FSO) | 24.4Hz | |
| Mechanical Q factor (QMS) | 6.79 | |
| Electrical Q factor (QES) | 0.52 | |
| Total Q factor (QTS) | 0.483 | |
| Voice coil inductance (LBM) | 2.04mH | |
| Voice coil diameter (d) | 50mm | |
| Force factor (BL) | 12.9T/m | |
| Peak excursion Xmax | 5.9mm | |
| Moving mass (MMS) | 152gr. | |
| Volume accoustic compliance (VAS) | 104liter | |
| Piston Area (SD) | 0.0512m² | |
| Displacement | 1.2cc | |
| Sealed box volume | 35.4liter | |
| Sealed Box Dimensions | 457 x 362 x 299mm ( 18mm thick MDF)(WxHxD) | |
| Vented box volume | 42.5liter | |
| Vented Box Dimensions | 590 x 362 x 394mm ( 18mm thick MDF)(WxHxD) | |
| Port dimensions (labyrinth) (W x H x L) | 35 x 324 x 736mm |
