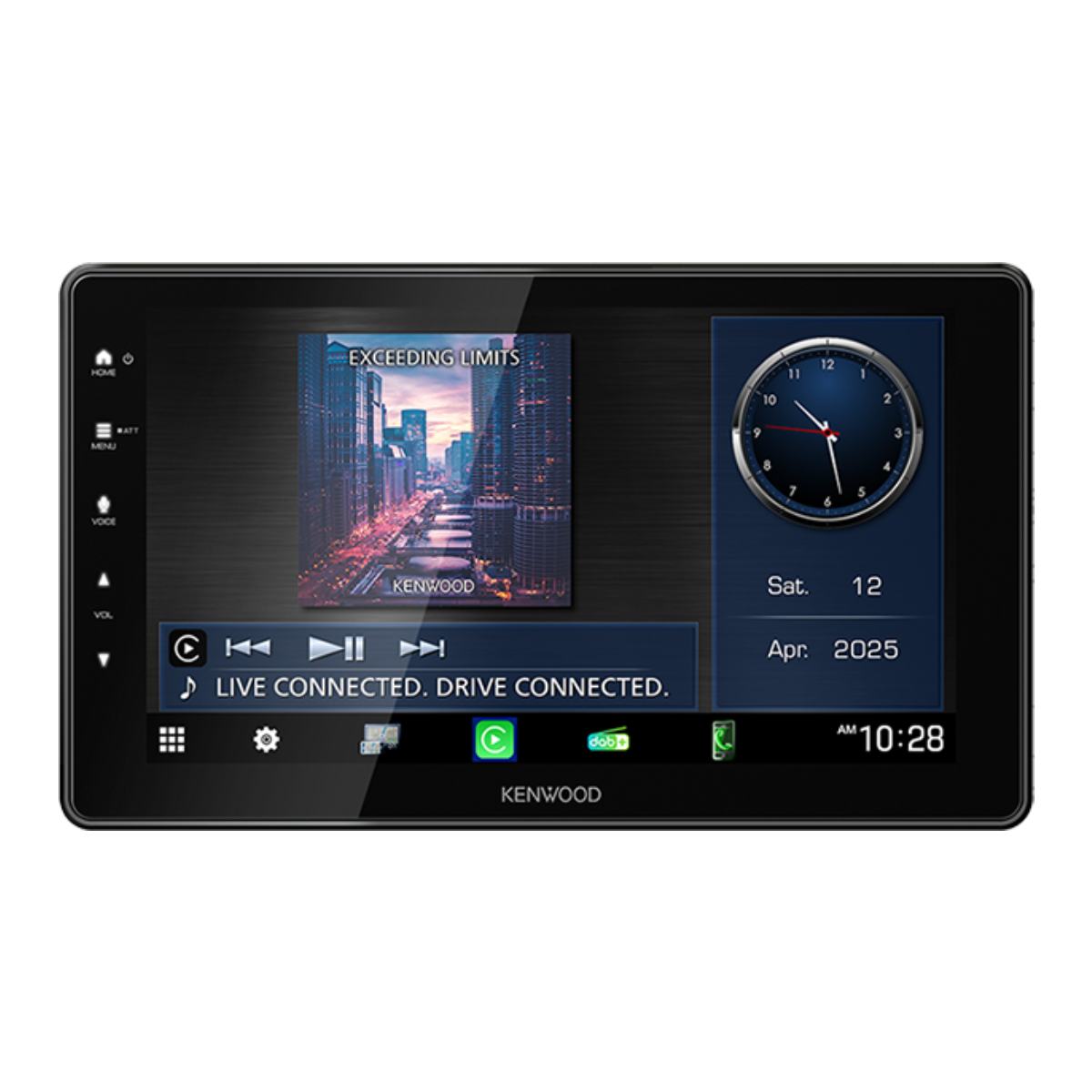

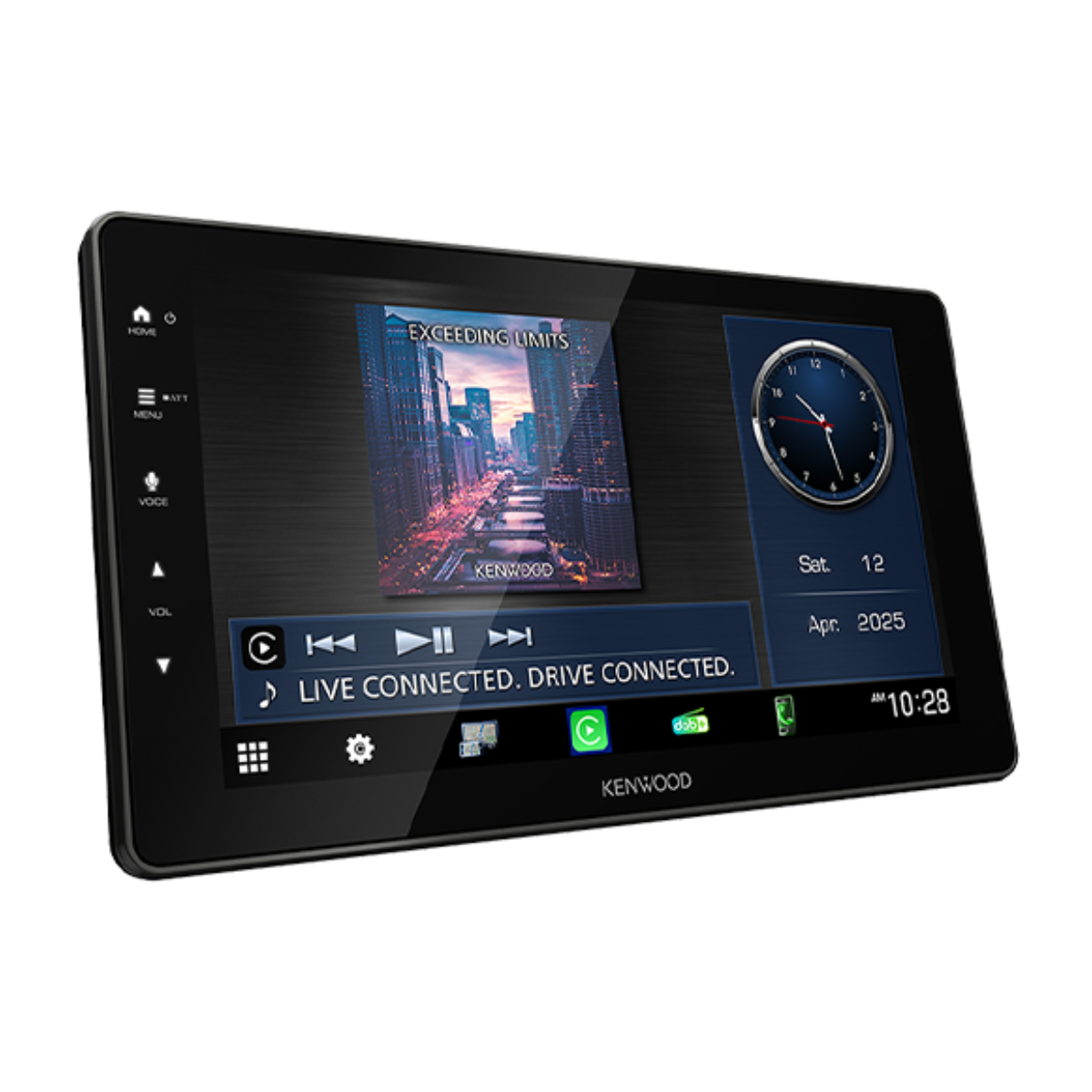

Kenwood DMX7509XDS Monitor with Receiver 9" Digital Multimedia Receiver
Kenwood DMX7509XDS Monitor with Receiver 9" Digital Multimedia Receiver
SKU:DMX7509XDS
Low stock: 2 left
Regular price
$999.00 AUD
Regular price
Sale price
$999.00 AUD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

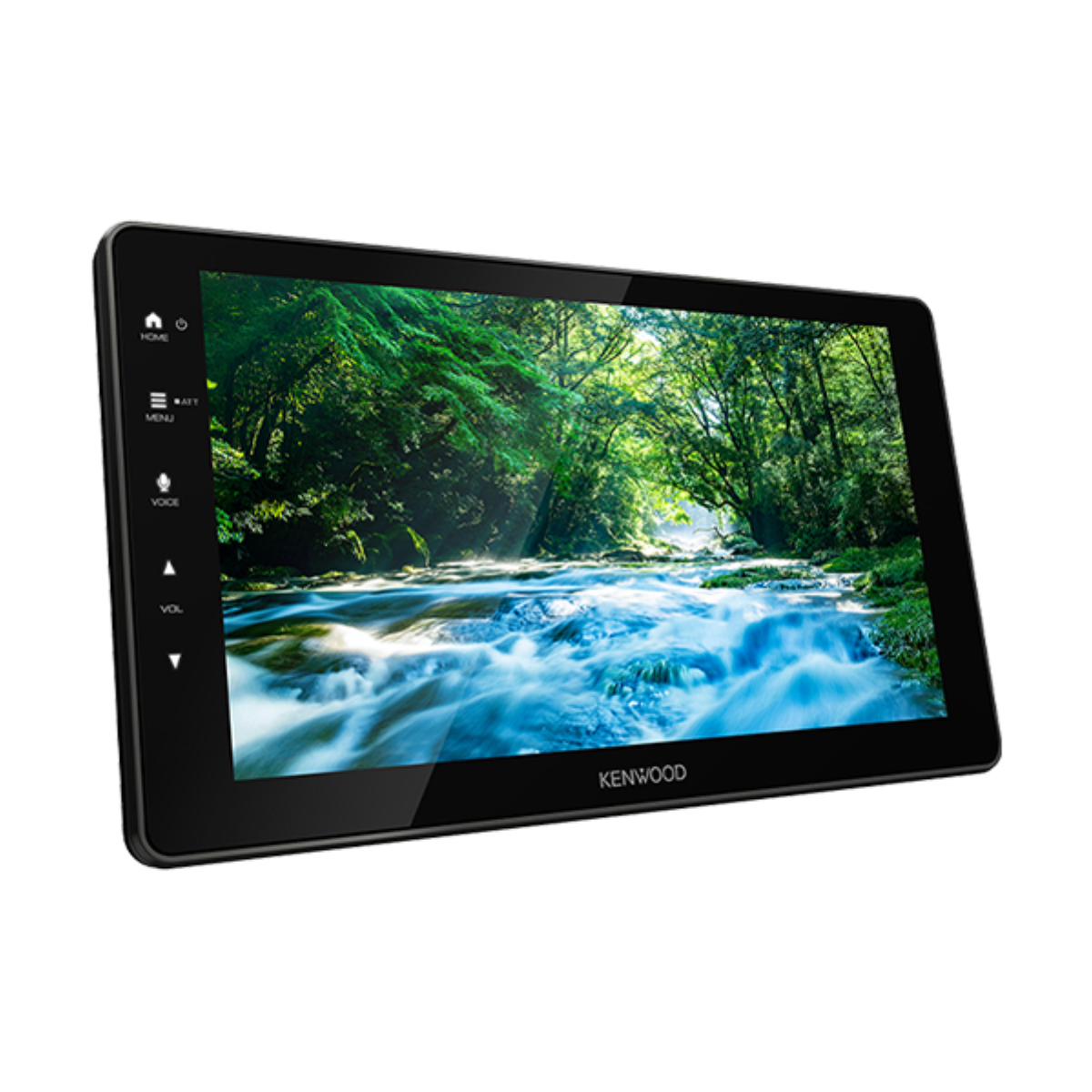

- 9" High Definition Monitor with Capacitive Touch Panel

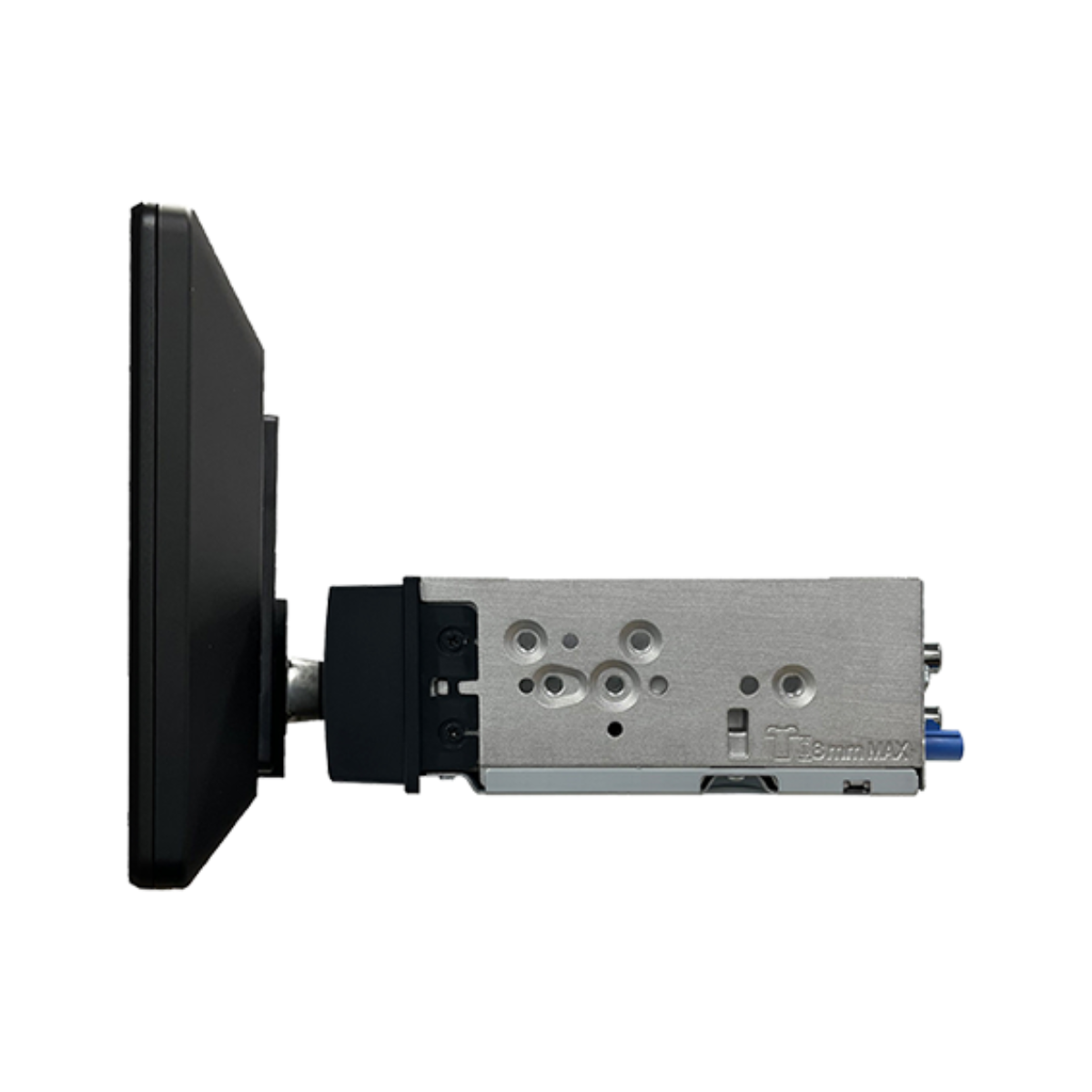

- Floating Panel Mechanism with 3-way Position Adjustment
- Android Auto™ & Android Auto™ Wireless
- Wired and Wireless Apple CarPlay
- Wireless Mirroring for Smartphones
- iDatalink Maestro Ready
- 2 Camera Inputs
- HD Rear Camera Ready
- HDMI Input
- Built-in DAB+ Digital Radio Tune, Bluetooth & Wi-Fi
- 3 Preouts 3V
| Main Unit | Monitor Section |
Picture size | 9 inches(diagonal) |
|---|---|---|---|
| W x H | 198.91 (W) x 111.89 (H) mm | ||
| Display system | LCD PANEL | ||
| FFS | |||
| Drive system | TFT active matrix system | ||
| Number of pixels | 2,764,800 | ||
| 1280H x RGB x 720V | |||
| Pixel arrangement | RGB striped arrangement | ||
| Back lighting | LED | ||
| USB I/F Section |
Connector Type | Type-A | |
| USB Standard | USB2.0 High Speed | ||
| File System | FAT 16/32, exFAT, NTFS | ||
| Maximum Power Supply Current | DC5V=2.1A | ||
| D/A Converter | 24 Bit | ||
| Audio Decoder | MP3 / WMA / AAC / WAV / FLAC | ||
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV | ||
| Frequency response | |||
| 192k Sampling | 20 - 20,000 Hz | ||
| 96k Sampling | 20 - 20,000 Hz | ||
| 48k Sampling | 20 - 20,000 Hz | ||
| 44.1k Sampling | 20 - 20,000 Hz | ||
| Total harmonic distortion 1kHz | Typ: 0.05% | ||
| Signal to Noise ratio | Typ: 78dB | ||
| Dynamic range | Typ: 89dB | ||
| Wi-Fi | IEEE Standard | 802.11 a/b/g/n/ac | |
| Frequency Range | Dual Band ( 2.4GHz / 5GHz ) | ||
| Channels | - | ||
| Auto(149,153,157,161ch) | |||
| Transfer rates (MAX) | 11a: 54 Mbps / 11b: 11 Mbps / | ||
| 11g: 54 Mbps / 11n: 130 Mbps / | |||
| 11ac: 390 Mbps | |||
| Output Power 2.4GHz/SISO |
11b:15dBm+3/-2dBm/ | ||
| 11g:14dBm+3/-0dBm/ | |||
| 11n(20MHz):13dBm+4/-1dBm/ | |||
| Output Power 5GHz/SISO |
11a:12dBm+4/-2dBm/ | ||
| 11n(20MHz):12dBm±4dBm / 11n(40MHz):12dBm±4dBm / |
|||
| 11ac(20MHz):12dBm±4dBm / 11ac(40MHz):12dBm±4dBm / 11ac(80MHz):9dBm±3dBm/ |
|||
| Bluetooth Section |
Technology | Bluetooth Ver5.3 | |
| Frequency | 2.402-2.480 GHz | ||
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 | ||
| Maximum Communication range | Line of sight approx.10m(32.8ft) | ||
| Audio Codec | SBC/AAC | ||
| Multi Profile Support | Support | ||
| Profile | Support HFP v1.7 | ||
| Support SPP v1.2 | |||
| Support A2DP 1.4 | |||
| Support AVRCP v1.6 | |||
| Support PBAP v1.2 | |||
| HDMI | Connector Type | Type-D | |
| Input Resolution | 640x480 60Hz 4:3 | ||
| 720x480 60Hz 4:3 | |||
| 720x480 60Hz 16:9 | |||
| 1280x720 60Hz 16:9 | |||
| Input Audio Type | 32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24-bit Linear PCM | ||
| DSP Section |
Graphics equalizer | ||
| BAND | 13Band | ||
| frequency (Hz) (BAND1-13) | 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k | ||
| Gain | -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9 [dB] | ||
| 2Way X'Over | |||
| HIGH PASS FILTER frequency | Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz] | ||
| SLOPE | -6/-12/-18/-24[dB/Oct.] | ||
| LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz] | ||
| SLOPE | -6/-12/-18/-24[dB/Oct.] | ||
| 3Way X'Over | |||
| HIGH PASS FILTER frequency | Through/250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k | ||
| SLOPE | -12/-18/-24[dB/Oct.] | ||
| Band PASS FILTER frequency | Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz] | ||
| 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through | |||
| SLOPE | -12/-18/-24[dB/Oct.] | ||
| LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/Through[Hz] | ||
| SLOPE | -12/-18/-24[dB/Oct.] | ||
| Position | |||
| Front / Rear /Subwoofer Delay | 0 - 6.1m (0.01m Step) | ||
| Gain | -8 to 0dB | ||
| Subwoofer Level | -50 to +10dB | ||
| FM | Frequency Range | 87.5～108.0(MHz) | |
| (Frequency step) | 50kHz | ||
| Usable sensitivity | Typ: 8dBf | ||
| S/N30dB | |||
| Frequency response | 100Hz - 10kHz | ||
| (±3.0dB) | |||
| S/N (dB) | Typ: 75dB | ||
| Stereo separation | Typ: 45dB | ||
| AM | Frequency Range | 531～1701(kHz) | |
| (Frequency step) | 9kHz | ||
| Usable sensitivity | Typ: 29dBu | ||
| DAB | Frequency Range | BAND III: 174.928MHz - 239.200MHz | |
| Sensitivity | Typ: -100dBu | ||
| S/N | Typ: 78dB | ||
| DAB Antenna Connector |
Connector type | SMB | |
| Output Voltage (11V-16V) | 11.8-12.8V | ||
| (@ B+ Voltage=14.4V) | |||
| Maximum Current | < 100mA | ||
| Video | Color system of external video input | NTSC/PAL | |
| External video input level (RCA jacks) | Typ: 1 Vp-p / 75 Ohms | ||
| External video input level (Mini jacks) | Typ: 1 Vp-p / 75 Ohms | ||
| External audio max input level (RCA jacks) | - | ||
| External audio max input level (Mini jacks) | 1.1 VRMS / 10 kOhms | ||
| Video Input level (RCA jacks) | - | ||
| Video Output level (RCA jacks) | Typ: 100 IRE | ||
| Audio Output level (RCA jacks) | Typ: 3 V /10k ohms | ||
| Audio | Maximum Power Output (Front&Rear) | 50Wx4 | |
| Output frequency band | 20 - 20,000Hz | ||
| Preout level (V) | Typ: 3 V /10k ohms | ||
| Preout impedance (Ω) | =< 600 Ohms | ||
| Speaker Impedance (Ω) | 4-8 Ohms | ||
| General | Chassis | Dimensions WxHxD | 178mmx50mmx120mm |
| Weight | 0.94kg | ||
| Monitor | Dimensions WxHxD | 240mm x 140mm x 31mm | |
| Weight | 0.66kg | ||
| Set | Weight | 1.6kg | |
