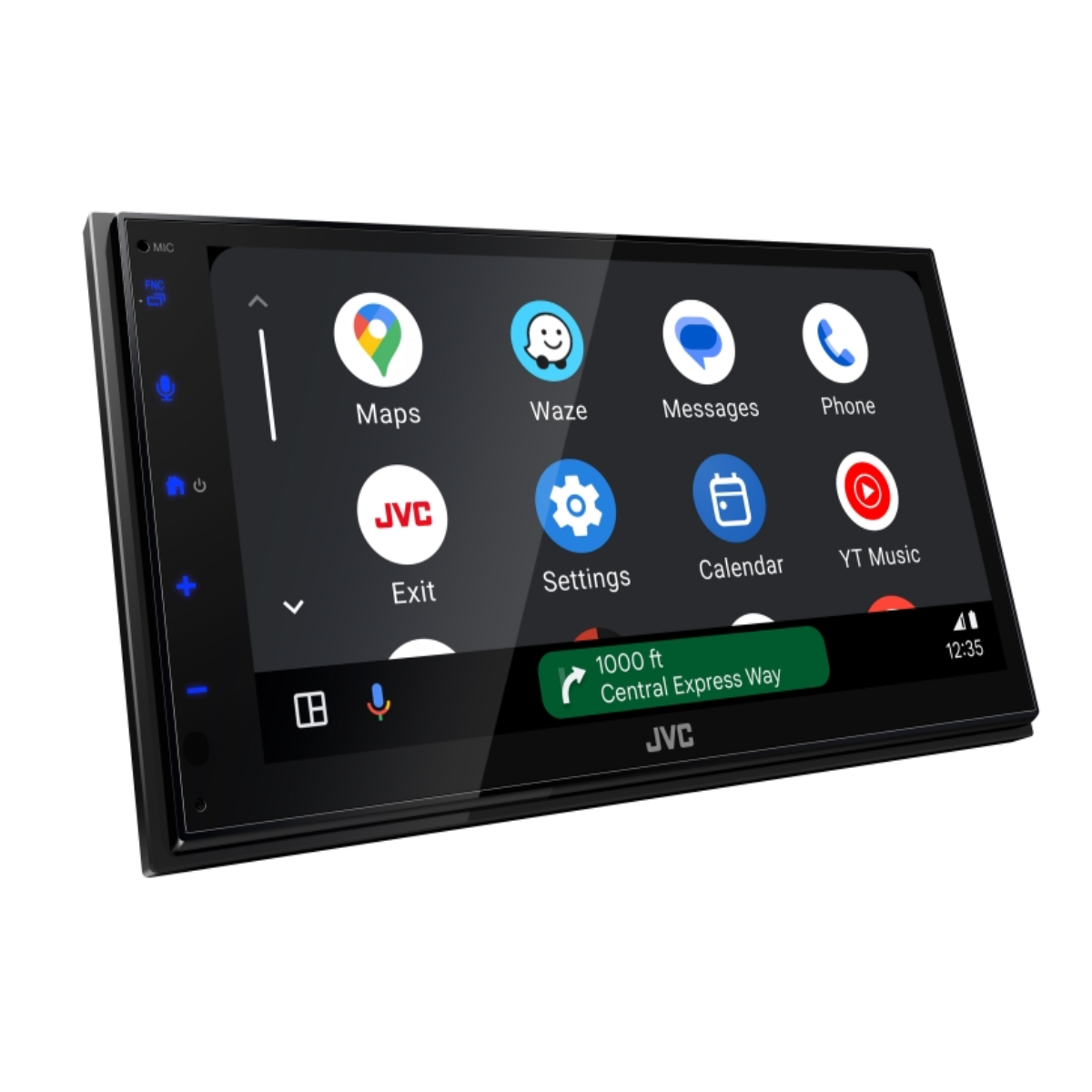

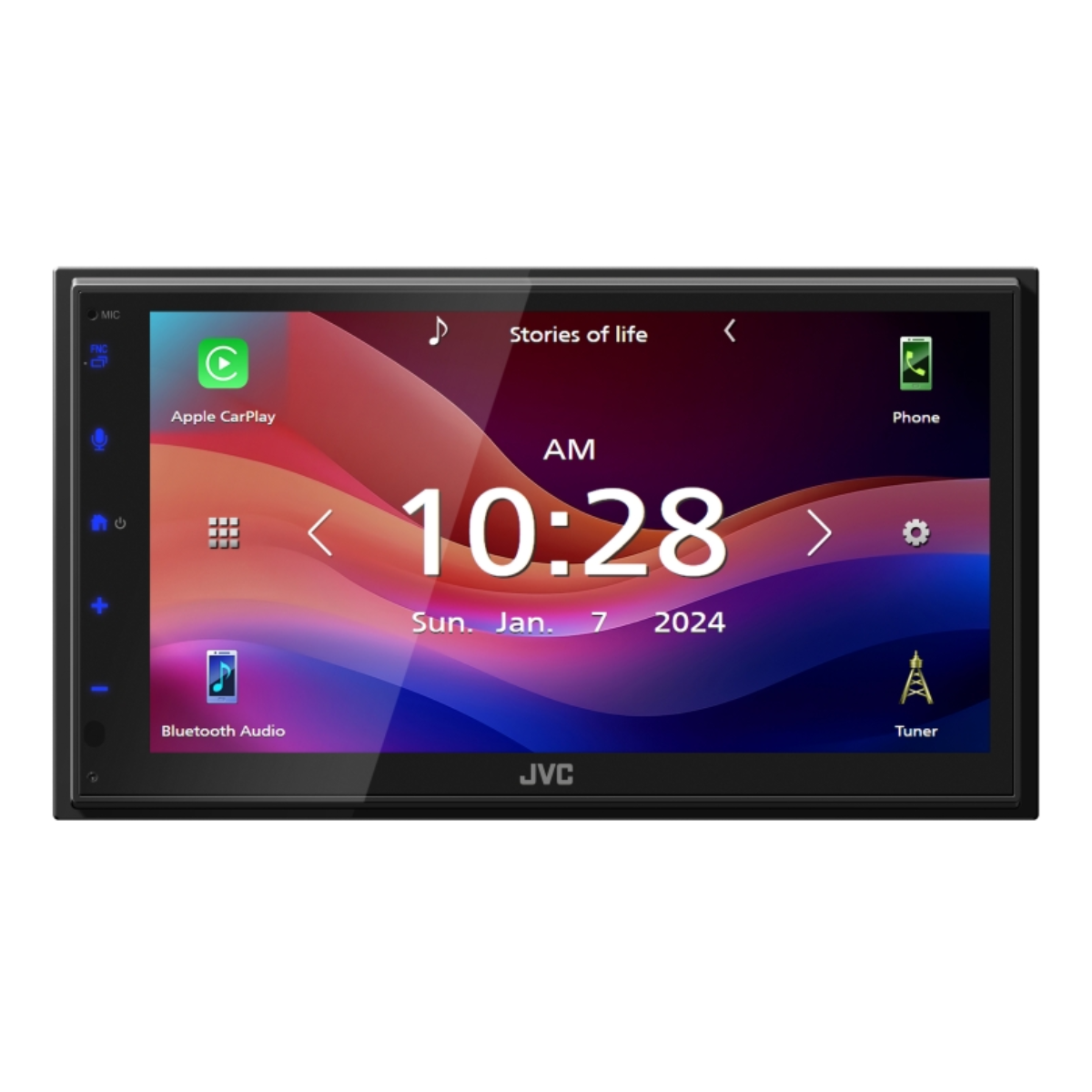

JVC KW-M590BT Digital Media Receiver featuring 6.8" Capacitive Touch Monitor

Monitor

Screen Size

6.8"W SVGA

Touch Panel

Capacitive

Key Illumination Color

Blue

Dimmer

Yes

Multilingual Display

Yes[4]

Media Playback

MP3 Compatible with Tag

USB

WMA Compatible with Tag

USB

WAV Compatible with Tag

USB

AAC Compatible with Tag

USB

FLAC Compatible with Tag

USB

H.264 Compatible

USB

WMV Compatible

USB

MPEG 1/2 Compatible

USB

MPEG 4 Compatible

USB

MKV Compatible

USB

Bluetooth Control

Built-in Bluetooth[1]

Yes (Hands-Free MIC Built-in)

Hands Free Call

Yes (HFP1.8)

Audio Streaming & Control (A2DP, AVRCP)

Yes

Supported Audio Formats

AAC / SBC

Voice Dialing (voice recognition compatible mobile phone required)

Yes

Phone Book Access Profile (PBAP)

Yes

Android Control

Android Auto[2]

Yes (via USB)

Mirroring for Android

Yes (via USB) *Need mirroring App

iPod/iPhone Control

CarPlay[3]

Yes (via USB)

Mirroring for iPhone

Yes (via USB) *Need mirroring App

USB

USB Port

x 1 (High Speed)

Position

Rear

USB Power Supply

Yes (2.1A High Current Charging)

Radio Tuner

Preset Stations

36(FM:24ch, AM:12ch)

Auto Memory Entry

Yes

FM

Frequency Range

87.5-108.0MHz

AM

Frequency Response

531-1,611kHz

Audio

Maximum Power Output (Front & Rear)

50Wx4

Full Bandwidth Power (Front & Rear)

22W x 4

EQ

Yes (13-Band Graphic EQ)

Preset EQ

Yes (7Preset + 3user)

Bass Boost

Yes

High-Pass Filter/Low-Pass Filter

Yes/Yes

Speaker Size Control

Yes

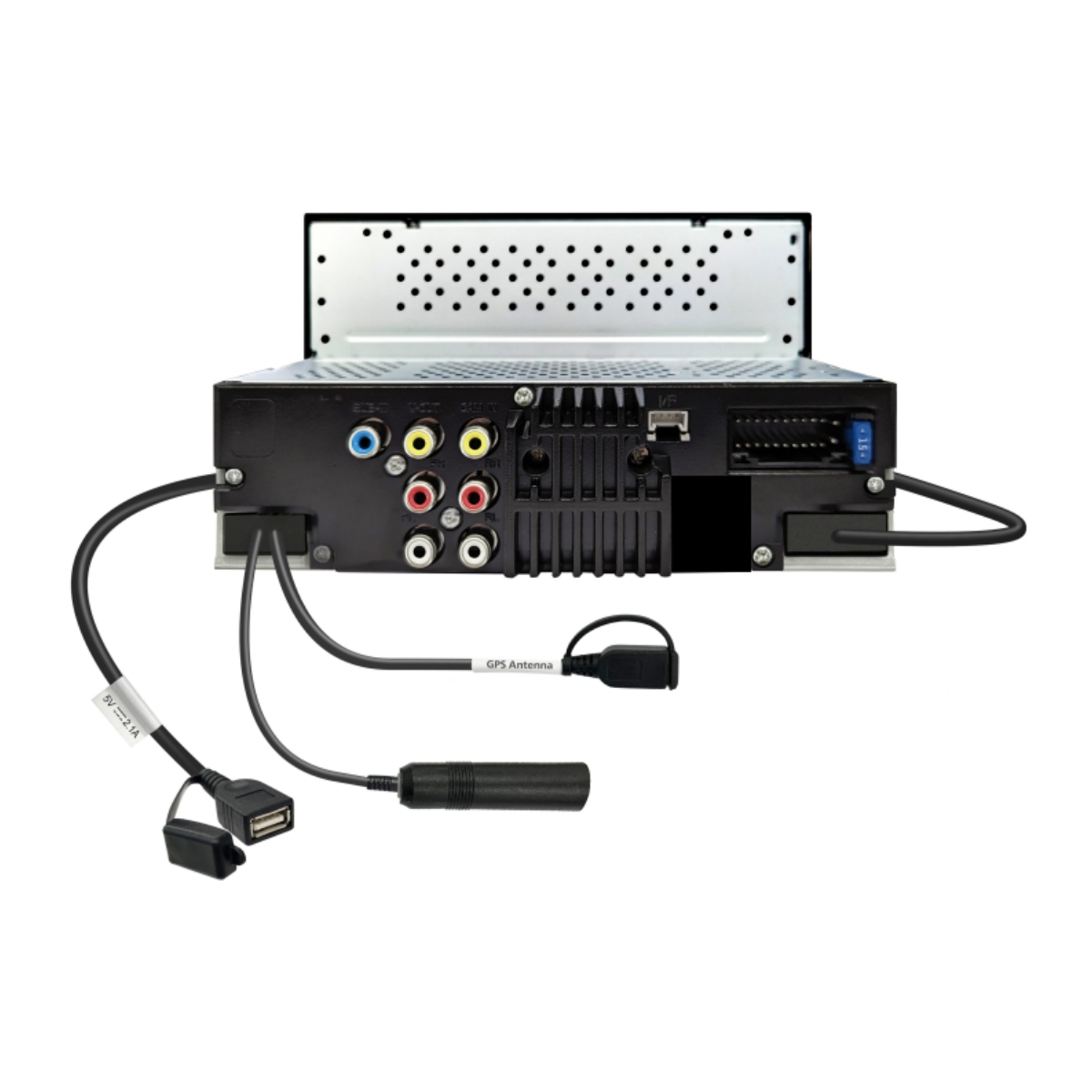

Inputs and Outputs

Video Out

x 1 (V:RCA)

Rear view camera Input

Yes

Line Output Terminals

2Preouts + Sub WF (Mono)

Pre-output Level/Impedance

2.5V / 10k ohms

Subwoofer Output with Level/Frequency Control

Yes (Normal / Reverse)

General

Short Chassis

Yes

Wireless Remote Control Type

Optional (RM-RK259 required)

Steering Remote Control Ready

Yes

Learning Direct OEM Remote

Yes

Dimensions (W x H x D) / Weight

Installation Size

178 x 100 x 86 (mm)

Weight

1.07kg (Including Trim plate)

Unit weight in individual package

1.76kg
