Hertz Audio Sub & Amp entry package

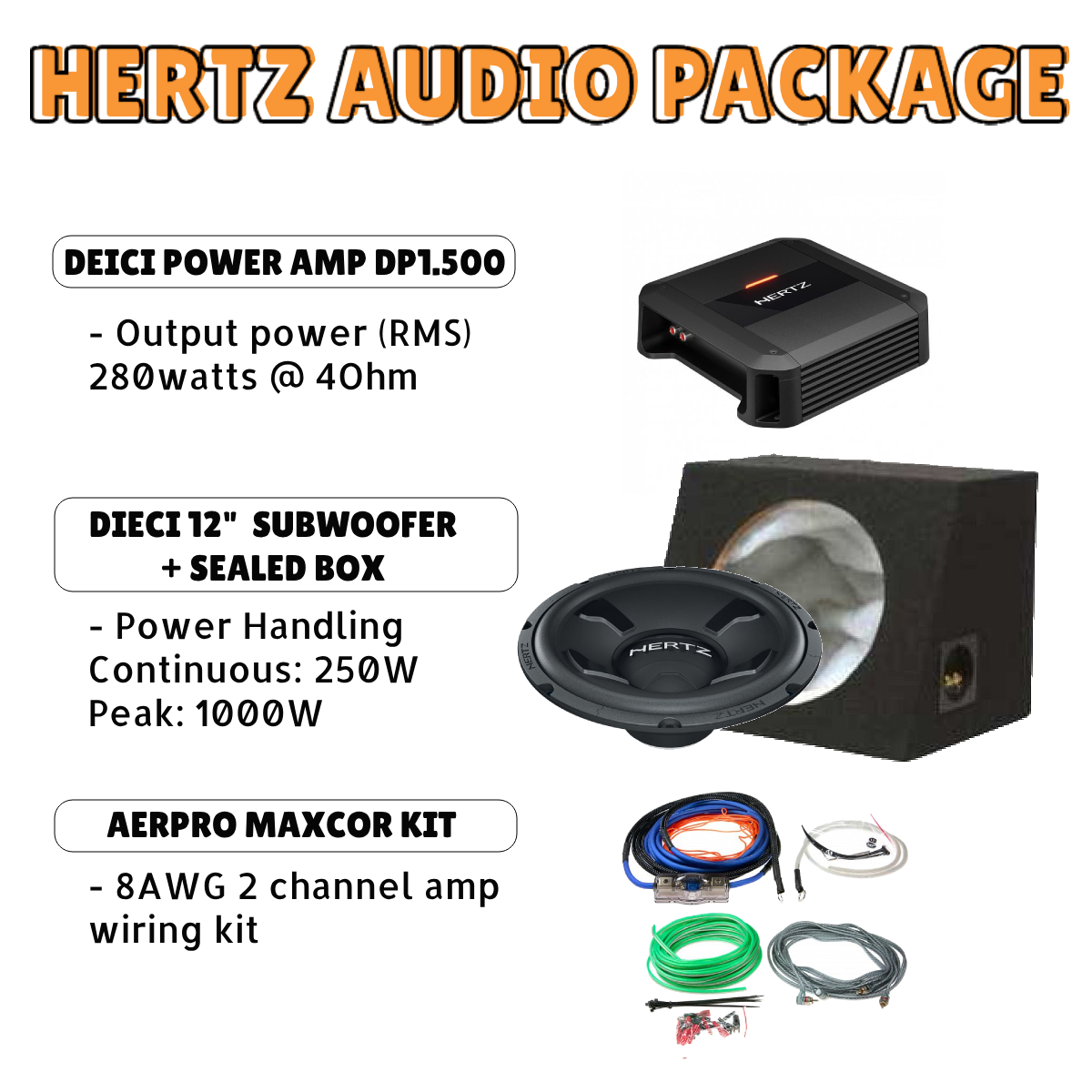

Package included:

- DIECI POWER 1180W 1 CHANNEL AMPLIFIER (DP 1.500)

• Channels: 1
• Power supply voltage: 11 - 15 VDC
• Idling current (power ON/OFF): 1 A
• Consumption at 2 Ohm, 14.4 VDC (Max Musical Power): 21 A
• Remote In: 4-15 VDC - 1 mA
• Distortion - THD (100Hz at 4 Ohm): 0.2 percent
• Bandwidth: 10 - 500 Hz
• S/N Ratio (A weighted at 1V): 99 dB
• Damping factor (100Hz at 4Ohm): 180
• Pre-ln sensitivity: 0.32-8VRMS
• Load impedance (MIN): 2 Ohm
• Size: 190 x 190 x 50mm
• Weight: 1.62 kg
• Adjustable Crossovers: Yes
• Output Power (RMS) at 14.4 VDC, THD 1 Percent:
  • 1Ch: 280 x 1 (4 Ohm)
  • 1Ch: 500 x 1 (2 Ohm)
• Total Power RMS: 1180W
• Inputs and Filters:
  • Inputs: Pre in and Speaker in
  • Pre out full range: Yes
  • Filters Full: Yes
• Notes: Compatible bass controller is HRC 02 (Sold Separately)

- DIECI 12" 1000W 4 OHM DVC SUBWOOFER (DS 30.3) + Aerpro subwoofer Sealed Box

• Size: 300mm (12")
• Power Handling
  • Continuous: 250W
  • Peak: 1000W
• Impedance Ohm: 4
• Voice Coil: 38mm (1.5")
• Frequency Response: 28-300
• Magnet Size (D x d x h): 115 x 50 x 25mm (4.5 x 2 x 1")
• Component Weight: 4kg
• Magnet: High Density Flux Ferrite
• Cone: Polypropylene with Mica injection
• Depth: 120mm (4.7")
• Voice Coil Type: Dual
• Xmech: +/- 9mm (0.59")
• Notes: Optional Grille available model number DSG3003

- MAXCOR 8AWG 2-CHANNEL AMP INSTALL KIT

• 6M Blue 8AWG Power Cable with O-Ring Terminal
• 0.8M White 8AWG Earth Cable
• 60A ANL Fuse With Holder
• 5M 2 Channel RCA Leads
• 4M 16AWG Speaker Cable
• 5M 20AWG Orange Trigger Wire
• Black Weaved Tubing Fitted to Power Cable
• Hex Key For Fuse Holder
• 8AWG Wiring Grommet
• Cable Ties
• All Required Terminals
