Hertz Audio DIECI POWER 1000W 4 CHANNEL AMPLIFIER DP 4.400
Hertz Audio DIECI POWER 1000W 4 CHANNEL AMPLIFIER DP 4.400
SKU:DP4.400
Low stock: 1 left
Regular price
$399.99 AUD
Regular price
Sale price
$399.99 AUD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

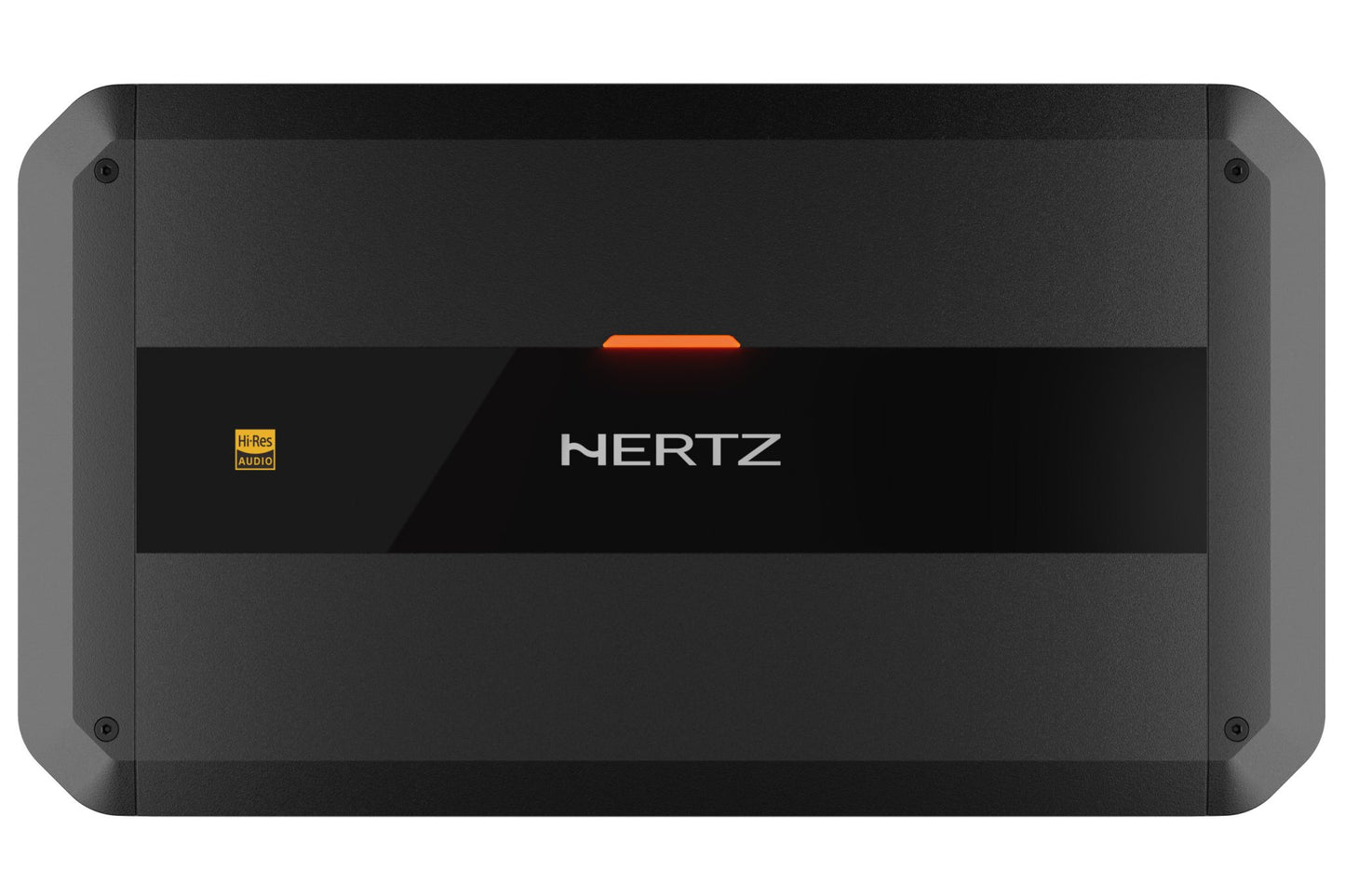

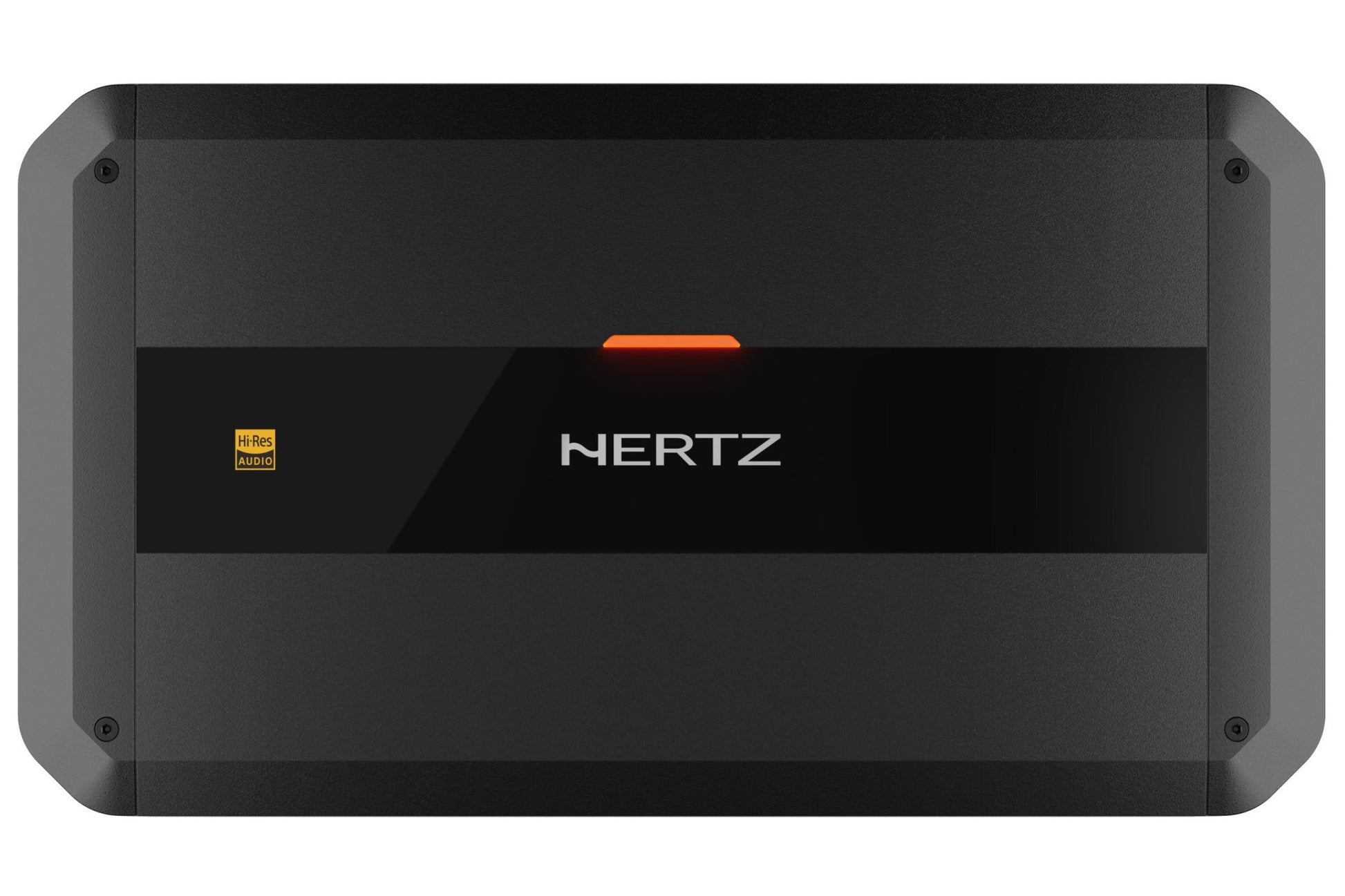

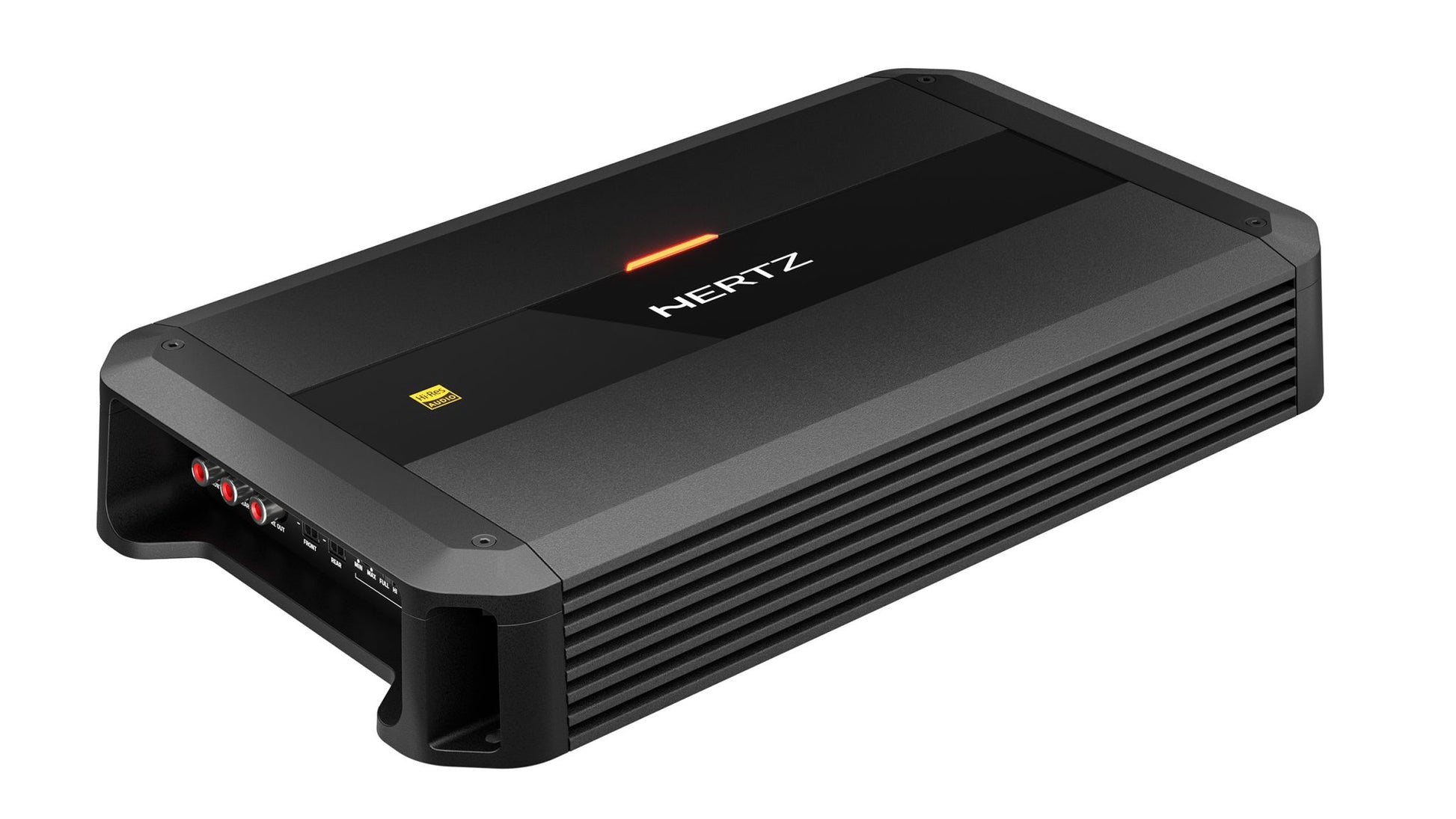

Hertz DIECI POWER amplifier DP 4.400 (Order Code DP4.400) is an audio powerhouse designed to elevate your car audio experience to unprecedented heights. Boasting High-Resolution Audio Certification, this amplifier delivers an impressive frequency response of 10 Hz to 45 kHz, ensuring that every nuance of your music is faithfully reproduced with crystal-clear precision.
Despite its compact size, the DP 4.400 packs a punch with its maximum power output, featuring fully bridgeable 4-channel Class-AB amplification and 2Ohm stability. This innovative design allows for a potent audio performance without sacrificing space, making it an ideal choice for those seeking uncompromised sound in a limited footprint.
The amplifier's aesthetics are as impressive as its performance. An elegant status LED, solid machined terminal block, and a removable top panel that safeguards controls and connections contribute to a sleek and sophisticated design that seamlessly integrates into any car interior.
Universal compatibility is a key feature of the DP 4.400, offering an operating supply voltage ranging from 6.5 to 16.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms. The integrated Universal Speaker Simulator enhances versatility, ensuring optimal performance with a wide range of audio sources.
Experience high-noise rejection with the balanced input circuitry of the Pre-in and Speaker-in, allowing for clean and interference-free signal transmission. The full set of controls, including adjustable input levels, high/low-pass crossover filters (50-4000Hz 12dB/Oct.), and bass boost, provides users with the flexibility to fine-tune the audio to their preferences.
Convenience meets intelligence with the Automatic Remote Turn-On/Off feature, seamlessly triggered by OEM radio speaker outputs. This ensures hassle-free operation and an efficient power management system.
Whether utilizing Speaker-In or Pre-In level inputs, the DP 4.400 offers full-range pre-outs, providing further flexibility in system configuration. Elevate your car audio system with the Hertz DIECI POWER Amplifier DP 4.400 - where power, precision, and style converge for an unparalleled listening experience on the road.
Specification
-
Channels: 4, 3, 2
-
Power supply voltage: 11 - 15 VDC
-
Idling current (power ON/OFF): 0.85 A
-
Consumption at 2 Ohm, 14.4 VDC (Max Musical Power): 30 A
-
Remote In: 4-15 VDC - 1.5 mA
-
Distortion - THD (100Hz at 4 Ohm): 0.01 percent
-
Bandwidth: 10 - 45k Hz
-
S/N Ratio (A weighted at 1V): 101 dB
-
Damping factor (100Hz at 4Ohm): 130
-
Pre-ln sensitivity: 0.38-8VRMS
-
Load impedance (MIN): 2 Ohm (4 Channel)
-
Size: 335 x 190 x 50mm
-
Weight: 2.88 kg
-
Adjustable Crossovers: Yes
-
Output Power (RMS) at 14.4 VDC, THD 1 Percent:
-
4Ch: 75 x 4 (4 Ohm)
-
4Ch: 105 x 4 (2 Ohm)
-
3Ch: 75 x 2 + 210 x 1 (4 Ohm)
-
3Ch: 105 x 2 (2 Ohm) + 210 x 1 (4 Ohm)
-
2Ch: 210 x 2 (4 Ohm)
-
Total Power RMS: 1000W
-
Inputs and Filters:
-
Inputs: Pre in and Speaker in
-
Input mode: 2Ch / 4Ch
-
Front Ch Filters: Hi-Pass
-
Rear Ch Filters: Hi-Pass and Lo-Pass
Features
-
High-Resolution Audio Certification: Hi-Res Audio certification featuring a frequency response of 10 Hz - 45 kHz.
-
Maximum Power in Compact Size: fully bridgeable 4-channel Class-AB 2Ohm stable power outputs in a small and compact design.
-
Attractive Design: elegant status LED, solid machined terminal block and removable top panel to protect controls and connections.
-
Universal Compatibility: operating supply voltage from 9 to 16.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms with integrated Universal Speaker Simulator.
-
High-noise rejection: Pre-in and Speaker-in featuring balanced input circuitry.
-
Full set of controls: adjustable input levels, high/low-pass crossover filters (50-4000Hz 12dB/Oct.), and bass boost to fine-tune the sound according to your preferences.
-
Automatic Remote Turn-On/Off: driven by OEM radio speakers
-
Full-Range pre-outs: available both when using Speaker-In and Pre-in level inputs.
