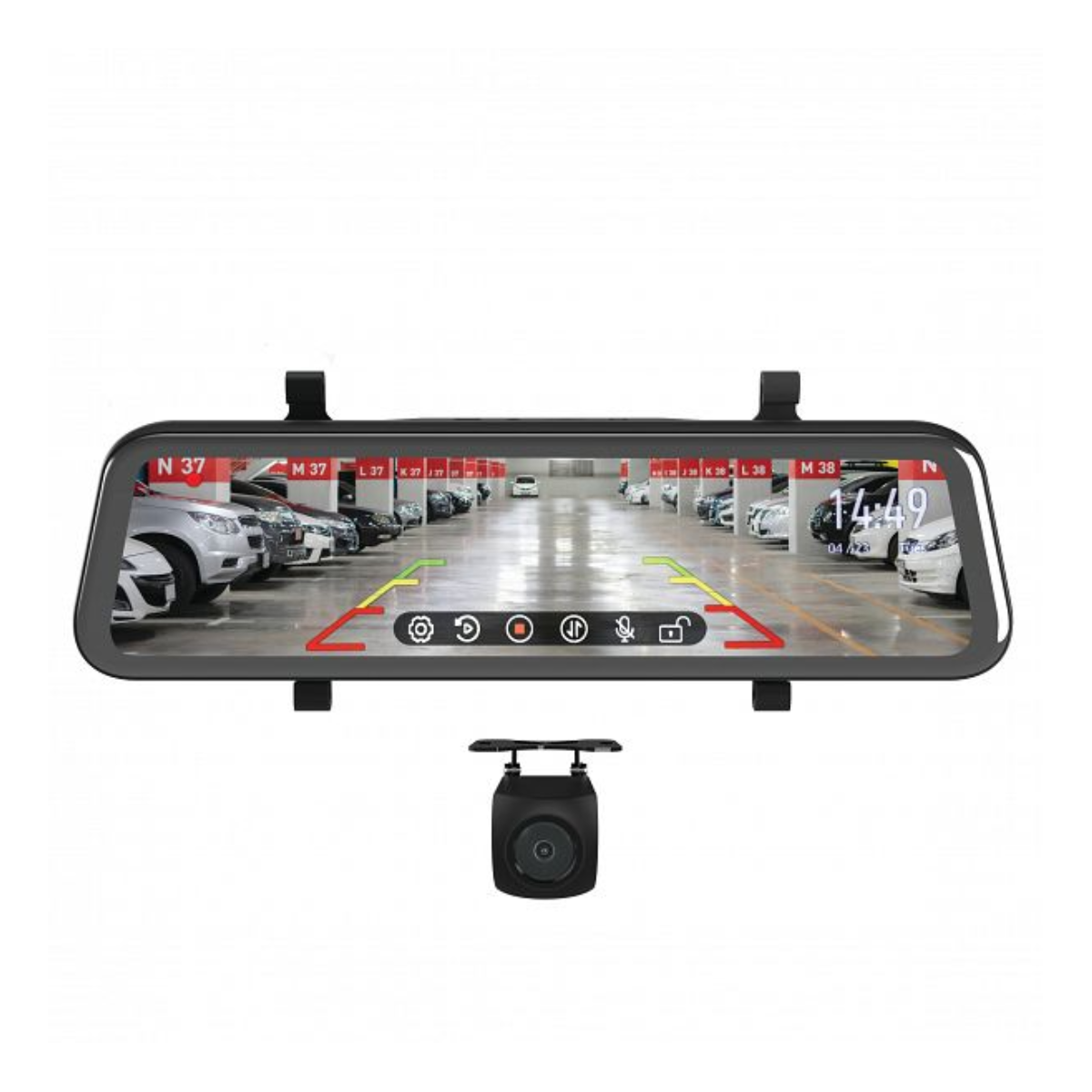

GATOR 9" HIGH RESOLUTION MIRROR MONITOR WITH HD 1080P REVERSE & LIVE STREAM CAMERA

MONITOR SPECIFICATIONS

• MONITOR SIZE: 9.35"
• MOUNTING TYPE: CLIP ON REAR VIEW MIRROR
• INPUT VOLTAGE: 5V (12/24V ACCESSORY POWER ADAPTER INCLUDED)
• VIDEO INPUTS: 1
• CONNECTION TYPE: 2.5MM JACK
• DIMENSIONS: 72mm(H) X 260mm(W) X 18mm(D)

REAR CAMERA SPECIFICATIONS

• MOUNT TYPE: SURFACE MOUNT
• CAMERA RESOLUTION: 1080P
• CAMERA ANGLE: 110 DEGREE
• IMAGE SENSOR (CMOS or CCD): CMOS IMX323
• PARKING GRIDLINES: YES
• IP RATING: IP65
• INPUT VOLTAGE: 12V
• CONNECTION TYPE: MICRO 4 PIN
• VIDEO CABLE LENGTH: 5.4M (Additional 3M Extension Cable Also Available - GRV90EXT - sold separately)
• REVERSE TRIGGER ON VIDEO CABLE: YES
• DIMENSIONS (Camera Only): 19mm(H) x 24mm(W) x 22mm(L)

RECORDING SPECIFICATIONS

• NUMBER OF CHANNELS: 1
• RESOLUTION: FULL HD 1080P (REAR)
• FRAMES PER SECOND: 25 (REAR)
• CAMERA ANGLE: 110° (REAR)
• G-SENSOR: YES
• SUPER CAPACITOR / BATTERY: 400MAH 3.7V BATTERY
• AUTO POWER ON/OFF: YES
• MICROPHONE: YES
• SPEAKER: YES
• USB/POWER INPUT: YES (MICRO)
• HARD WIRE KIT: OPTIONAL
• POWER ADAPTOR VOLTAGE: 12/24V
• DASH CAM INPUT VOLTAGE: 5V 1.5A
• RECORDING MODES:
  • CONTINUOUS LOOP: YES (SEAMLESS CYCLE RECORDING)
  • DRIVING IMPACT/INCIDENT DETECTION: YES
  • MANUAL (SOS): YES
  • PARK IMPACT DETECTION: NO
  • PARK MOTION DETECTION: NO
• MEMORY CARD CAPACITY / CLASS: SUPPORTS UP TO 64GB (CARD MUST BE C6 OR ABOVE, C10 IS RECOMMENDED)

KIT SPECIFICATIONS

• WIRED OR WIRELESS: WIRED
• INCLUSIONS:
  • 6M CAMERA CABLE (INCLUDING CAMERA LEAD)
  • USB LEAD
  • 12V/24V CHARGING ADAPTER
  • MOUNTING SCREWS
  • 3M ADHESIVE FOR BUTTERFLY CAMERA
  • MIRROR PROTECTING PADS
  • RUBBER MOUNTING CLIPS

OPTIONAL EXTRAS AND SPARE PARTS

• OPTIONAL EXTRAS:
  • GRV90EXT: 3M Video Extension Cable
  • GUNIHWC: Hard Wire Kit
• SPARE PARTS (Not in retail packaging & no barcode)
  • GRV9RC: Replacement Rear Camera
  • GRV9LOOM: Replacement main camera harness (4 pin to 2.5mm jack)
  • GRV912V: 12/24V Cigarette lighter adapter
  • GRV9RMC: Monitor rubber mounting clips
  • GRV9BRA: Monitor mounting brackets

• 9" high resolution super wide LCD touch screen mirror monitor
• 1080P High definition camera with video recording at 30 fps for clear crisp recordings (optional micro SD card required, sold separately)
• Rubber clip-on mirror mount for simple and secure installation, suitable for all vehicles with a rear-view mirror
• 110-degree wide angle camera lens reduces blind spots at the rear of the vehicle
• Automatic reverse trigger displays reverse image and parking gridlines when reverse gear is engaged to assist with reverse parking
• Live streaming function enables the monitor to display rear vision while driving, ideal for vehicles with limited rear vision
• Built in G-Sensor detects an impact and securely saves the video footage on the micro SD Card separate from the continuous loop files (optional micro SD card required, sold separately)
• Seamless cycle loop recording function continuously records in an indefinite loop without stopping, constantly overwriting the oldest file with the newest video (optional micro SD card required, sold separately)
• Supports Micro SD card class 10 up to 64GB (sold separately)
• Includes a 5.4m rear camera cable with trigger wire to connect the rear cam to the monitor
• GRV90EXT 3m extension cable also available if extra length is required for installation in longer vehicles such as; utes, trucks and vans (sold separately)
• GUNIHWC Hard Wire Kit available for connection via vehicle fuse box instead of using the included accessory socket power adaptor (sold separately)
• Also includes USB lead, mounting screws, 3M adhesive, mirror protector pads and rubber mounting clips
