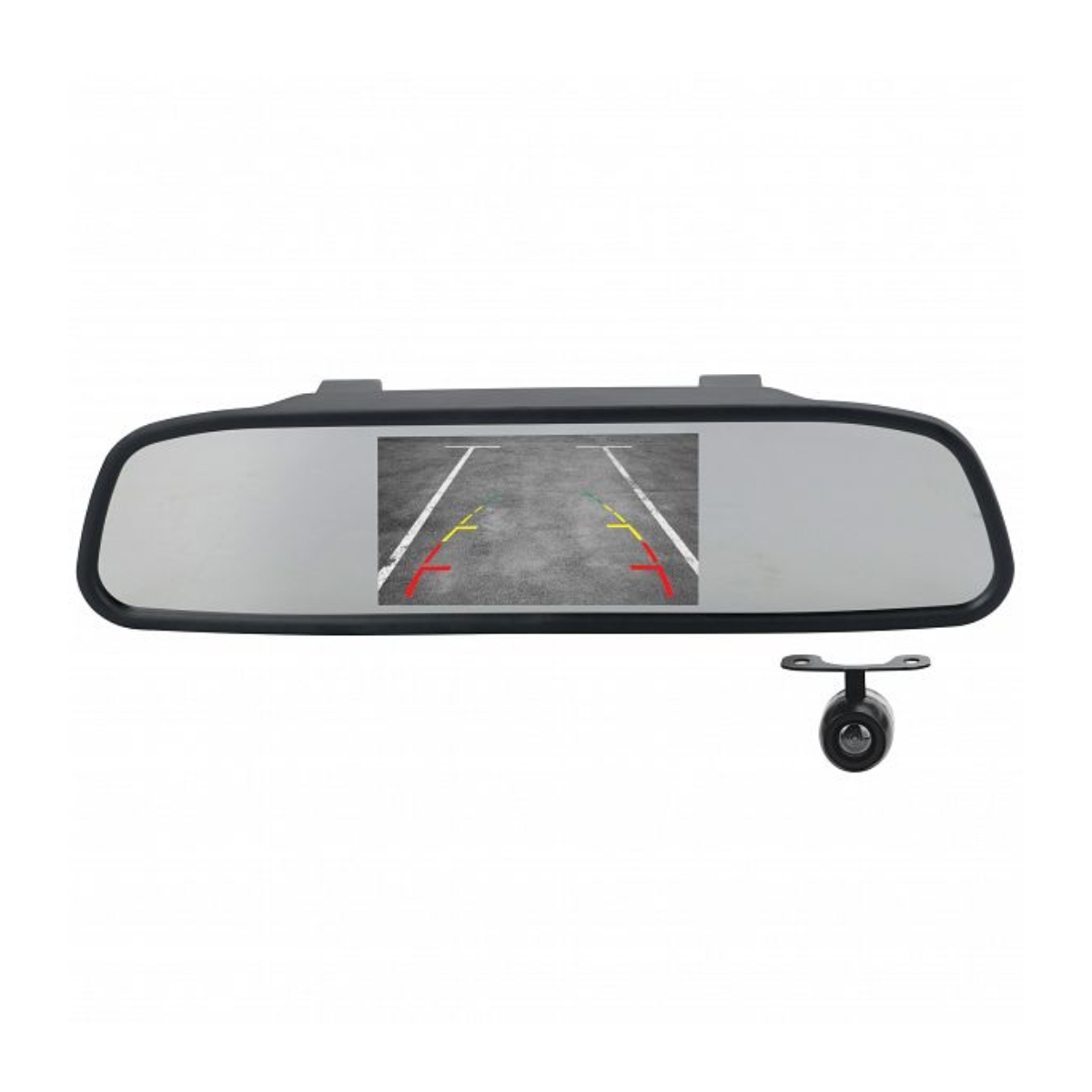

GATOR 4.3" MIRROR MOUNT DISPLAY REVERSE CAMERA KIT

MONITOR SPECIFICATIONS

• MONITOR SIZE: 4.3"
• MOUNTING TYPE: CLIP ON REAR VIEW MIRROR (EXTENDS 53 - 70MM)
• RESOLUTION / BRIGHTNESS: 480(H) x 272(V) / 500 CANDELA
• INPUT VOLTAGE: 12V
• VIDEO INPUTS: 2
• DISPLAY CONFIGURATION (SINGLE, DUAL OR QUAD): SINGLE
• IMAGE FLIP: NO
• DISPLAY IMAGE ADJUSTMENT:
  • BRIGHTNESS: YES
  • CONTRAST: YES
  • SATURATION: YES
• REVERSE (MIRROR) IMAGE: NO
• PAL or NTSC: PAL
• CONNECTION TYPE: RCA
• DIMENSIONS: 75mm(H) X 285mm(W) X 37mm(D)
• OTHER FEATURES: N/A

CAMERA SPECIFICATIONS

• MOUNT TYPE: BUTTERFLY SURFACE
• CAMERA TYPE (REVERSE OR REARVIEW): REVERSE
• CAMERA ANGLE: 120 DEGREE
• IMAGE SENSOR (CMOS or CCD): CMOS
• PARKING GRIDLINES: YES
• PAL or NTSC: PAL
• IP RATING: IP67
• INPUT VOLTAGE: 12V
• MINIMUM ILLUMINATION: 0.2LUX
• NUMBER OF LEDs: N/A
• LED TYPE: N/A
• PLUG TYPE CAMERA END: 4 PIN MICRO DIN PLUG
• PLUG TYPE MONITOR END: RCA
• VIDEO CABLE LENGTH: 6M
• REVERSE TRIGGER ON VIDEO CABLE: YES
• DIMENSIONS (Camera Only): 18mm(H) x 38mm(W) x 30mm(L)

KIT SPECIFICATIONS

• WIRED OR WIRELESS: WIRED
• OTHER FEATURES: N/A

• Provides clear rear view of the vehicle for safe reverse parking
• 4.3" high resolution colour display for a clear, easy to view image
• Clip on mirror design securely mounts on the existing rear view mirror in the vehicle
• Butterfly mount reverse camera design for discreet and simple installation
• Waterproof IP67 reversing camera that withstands the harsh environment
• 120 degree wide angle lens that minimises blind spots
• Easy wired installation for DIY
