How to Mount a UHF Antenna on Your 4WD Right
A UHF radio is only as useful as the antenna mounted above it. You can fit a quality head unit and radio, but poor antenna placement, a loose bracket or damaged coax cable will cut range when you need it most. If you are looking up how to mount UHF antenna hardware on your 4WD, ute or work vehicle, start by choosing the right location for the way you drive - not just the spot that looks toughest.
For most Australian drivers, the aim is simple: clear communication on the highway, at the job site, through the scrub and on convoy tracks. A tidy, solid installation protects the vehicle, keeps the cable out of harm’s way and gives your radio the best chance of performing properly.
Choose the antenna location before buying brackets
The best mount depends on your vehicle, antenna type and where you use the radio. Antennas work best when they have a clear view around them. Mounting one low behind a steel roof rack, spare wheel carrier or awning can block signal in some directions.
A bullbar is the most common option for a 4WD or touring ute. It is strong, easy to access and keeps the whip away from roof loads. The trade-off is that the antenna sits lower than a roof-mounted option and can be partly shielded by the bonnet, especially towards the rear of the vehicle.
A roof rack mount puts the antenna higher, which can improve line-of-sight range in open country. It also places the antenna closer to the centre of the vehicle, generally giving a more even signal pattern. However, it is more exposed to low branches, carpark height limits and garage doors. You also need a clean, weatherproof cable route into the cabin.
Other workable locations include a bonnet channel bracket, rear bar, canopy rack or spare wheel carrier. These can suit a work ute, wagon or canopy setup, but avoid placing the antenna directly beside large metal accessories or in a spot where it will strike a rear door, tailgate or roof-mounted gear.
How to mount a UHF antenna with the right bracket
Do not treat the bracket as an afterthought. The bracket carries the full load of the antenna, including vibration at highway speeds and repeated knocks from branches. A light antenna may be fine on a standard bullbar tab, while a heavy-duty spring base and tall whip need a stronger mount with minimal flex.
Check that the bracket suits the antenna base thread. Most UHF antennas use a common threaded base arrangement, but the hardware still needs to seat fully and tighten correctly. If the thread is cross-threaded or the mount rocks under hand pressure, stop and fix it before running cable.
When mounting to a bullbar or roof rack, use stainless hardware where practical and tighten the fasteners evenly. A spring base is worthwhile on a vehicle that sees corrugations, bush tracks or low branches. It helps prevent damage to the antenna and mount, but it does not make a poorly mounted bracket acceptable.
If drilling is required, measure twice before making a hole. Check both sides of the panel or bracket for wiring, radiators, intercoolers, airbags, trim clips and moving components. Deburr the hole after drilling, touch up exposed metal to reduce corrosion, and fit a grommet wherever cable passes through metal.

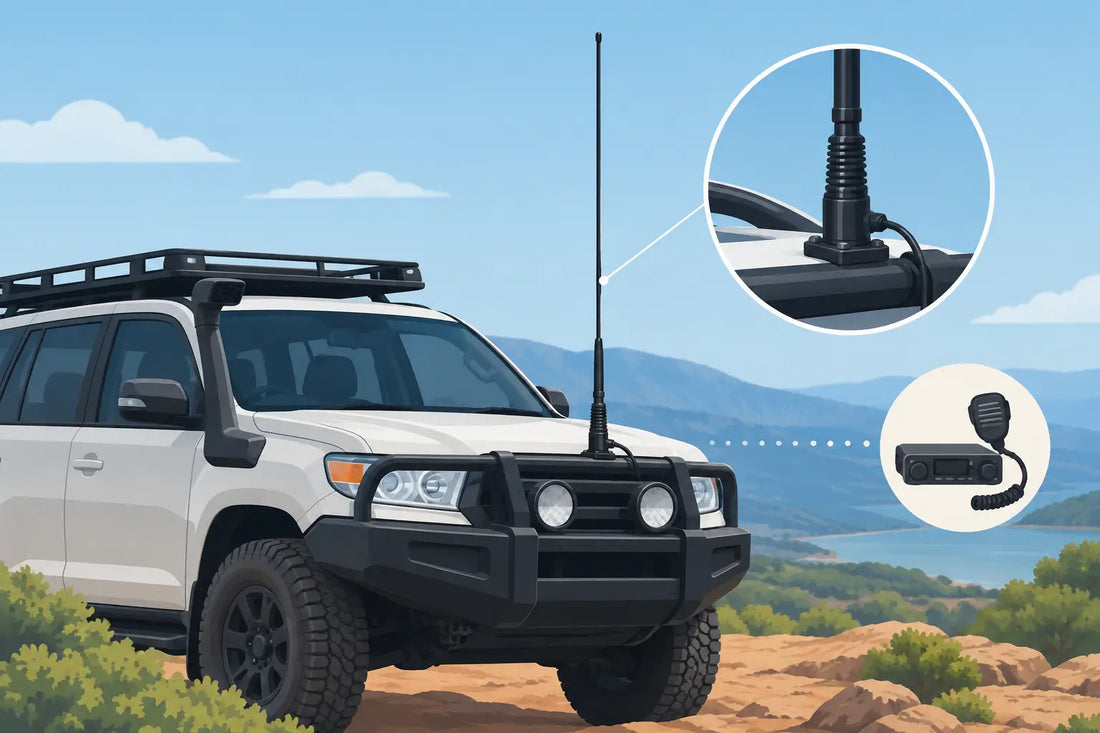

Mounting on a bullbar
Fit the antenna as high and as far forward as the bar allows without interfering with the bonnet, grille, driving lights or aerial. Keep enough clearance for the whip to flex. On some vehicles, a tall antenna mounted too close to the bonnet can tap paintwork on rough roads.
A bullbar bracket must be bolted to a solid section, not thin decorative trim. If your bar has an aerial tab, inspect it for cracking or excessive movement before fitting a long whip. A reinforcing plate may be needed for heavier antennas.
Mounting on a roof rack or canopy
Use a bracket made for the rack profile and avoid clamping onto a loose crossbar. The antenna needs to remain upright and the cable must be supported so it cannot flap in the wind. Leave enough slack at the antenna base for removal, but do not leave loops that can catch branches.
For a canopy installation, make sure the mount has a suitable earth path if the antenna design requires one. Fibreglass canopies, powder-coated racks and painted mounting surfaces can affect electrical contact. This is one reason antenna selection matters as much as mounting position.
Match the antenna type to the vehicle and terrain
A UHF antenna is not one-size-fits-all. Taller, higher-gain antennas concentrate more of their signal towards the horizon. They can work well on flat highways and open country, where vehicles are spread out over distance. Their downside is less useful coverage above and below the vehicle, which can be a disadvantage in steep hills, tight valleys or forest tracks.
Lower-gain antennas generally provide a broader signal pattern and are often a better all-round choice for hilly terrain, city use and convoy work. A short stubby antenna suits carparks, underground sites and vehicles that regularly carry ladders or enter low-clearance areas, although maximum range may be reduced.
Also check whether the antenna is ground-plane dependent or ground-plane independent. A ground-plane-dependent antenna needs a suitable metal surface and good electrical connection to work as intended. A ground-plane-independent antenna is usually the safer choice for fibreglass canopies, non-metal roof racks and certain awkward mounting positions. Follow the antenna manufacturer’s requirements rather than assuming every aerial behaves the same way.
Route the coax cable carefully
The coaxial cable between the antenna and radio is part of the system, not just a lead to hide behind trim. Kinking it, crushing it under a panel, stretching it tight or routing it against sharp metal can create faults that are difficult to find later.
Start at the antenna base and run the cable along existing factory looms where possible. Use quality cable ties or P-clips at regular intervals, keeping the cable clear of exhaust heat, steering shafts, bonnet hinges, fan shrouds and sharp edges. Do not route it beside high-current power cables for long distances if another path is available.
When entering the cabin, use an existing firewall grommet if there is room and it will not compromise the factory seal. Never force the coax through a small opening or cut into a factory wiring loom. On late-model vehicles, be particularly careful around airbag wiring and sensors. Yellow plugs and yellow conduit are a clear sign to leave that area alone.
Avoid cutting excess coax cable unless the antenna manufacturer specifically says it is acceptable. Many UHF antenna leads are supplied at a set length for a reason. If there is spare cable, coil it loosely in wide loops and secure it away from pedals, heater ducts and service access points.
Check the earth, connections and radio setup
A clean antenna mount matters. Powder coat, paint, corrosion and loose hardware can interrupt the earth path required by some antenna systems. Where a metal-to-metal contact is needed, clean a small contact area, use suitable hardware and protect the finished connection from moisture once tightened.
Do not confuse antenna earthing with the radio’s power earth. The radio should still be powered and fused correctly according to its installation instructions. A poor vehicle power connection can create noise, voltage drop and unreliable operation even if the antenna is mounted properly.
Before fitting trim back into place, inspect every connector. The antenna plug should be fully seated at the radio, with no bent centre pin, split braid or strain on the connection. Switch the radio on, listen for normal receive audio and test transmit performance with another vehicle or handheld radio where possible.
For a new install, an SWR check is good workshop practice. It can identify an antenna mismatch, poor connection or mounting issue before you rely on the radio on a trip. Do not keep transmitting for long periods if the reading indicates a fault. Fix the cause first.
Common mounting mistakes that cost range
The most common problem is fitting the antenna where it is convenient rather than where it can work properly. A whip tucked behind a roof basket or bolted low behind a spare tyre may survive, but it will not give the same coverage as a clear, solid installation.
The next issue is using a mount that flexes. If the base moves constantly, the cable and connector take the punishment. Another regular fault is pinched coax behind a bonnet hinge or through a door seal. It may look tidy on day one, then fail after months of vibration and weather.
Finally, do not choose antenna gain purely by height. A huge whip is not automatically the best answer for every 4WD. Match the antenna to your usual terrain, parking restrictions and how often you need to remove it.
A properly mounted UHF antenna should feel solid, clear the vehicle through its full range of movement and keep its cable protected from heat and abrasion. If you are unsure about the bracket, ground plane or cable path on your vehicle, the team at Mr T Garage can help set up a practical UHF installation that is ready for the road, not just the driveway.
