Amplifier Clipping Symptoms: What Your Car Is Telling You
That sharp, gritty sound when you turn the stereo up is not your system “working hard”. It is often one of the clearest amplifier clipping symptoms - and it can ruin speakers far quicker than most drivers expect. If your car audio has suddenly become harsh, weak, hot or unreliable at higher volume, back it off before the damage becomes permanent.
Clipping is common in systems that have been upgraded in stages, fitted with a powerful subwoofer but modest amplifier, or tuned by ear with gains and bass boost wound up. The good news is that most clipping issues can be found and corrected with the right setup.
What amplifier clipping actually means

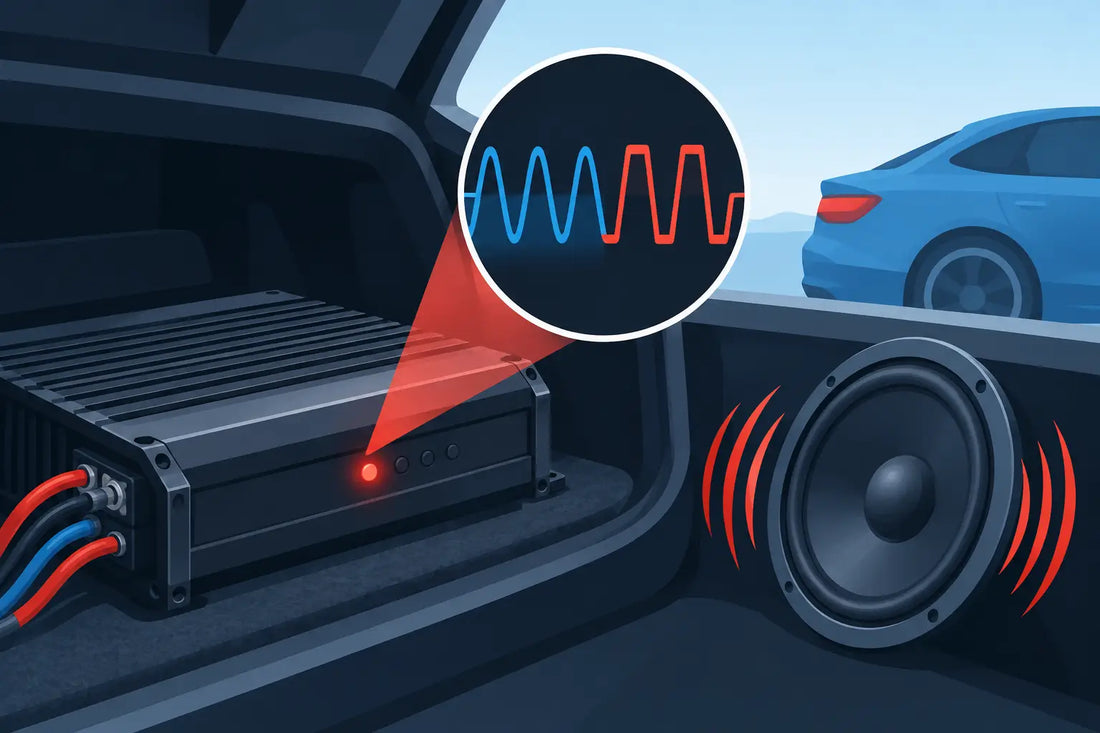

An amplifier runs on a limited power supply. In a vehicle, it takes low-voltage audio from the head unit or processor and increases it enough to drive your speakers or subwoofer. When the music signal asks for more output than the amp can provide, the smooth top and bottom of the waveform are cut flat. That is clipping.
Instead of clean musical peaks, the speakers receive a distorted signal containing extra high-frequency energy and heat. A small amount of occasional clipping on a hard transient may not immediately destroy anything. Sustained clipping, especially on bass-heavy music, is where voice coils overheat and tweeters fail.
This is why a lower-powered amplifier can damage a speaker when driven flat out. The problem is not simply “too many watts”. It is a distorted signal being delivered for too long.
The amplifier clipping symptoms to watch for
The first signs are usually audible, but your gear may also give you physical clues. Listen to the system at normal volume first, then carefully compare it at the point where it starts sounding unpleasant.
Common amplifier clipping symptoms include:
- Sound that becomes scratchy, brittle, fuzzy or noticeably harsh as volume rises
- Bass notes that lose depth and turn into a flat thump, crackle or rattle
- Speakers that sound fine quietly but distort well before the volume should be high
- An amplifier that runs excessively hot, enters protection mode or cuts in and out
- A burning smell from a speaker, subwoofer or amplifier wiring area
- Tweeters that suddenly go silent, or speakers that sound quieter and duller than before
The harshness is often most obvious on vocals and cymbals
Many people expect clipping to sound like broken-up bass. It can, but the giveaway is frequently in the top end. Vocals get edgy, snare hits sound papery and cymbals become splashy rather than crisp. If you find yourself turning down the treble to make loud music tolerable, check the gain structure before changing equaliser settings.
Protection mode is a warning, not a diagnosis
An amp going into protect can be caused by overheating from clipping, but also by a shorted speaker lead, incorrect speaker impedance, poor earth connection or voltage drop. Letting it cool down and turning it back on is not a repair. The wiring, load and setup need to be checked before it damages the amplifier.
Why clipping happens in car audio systems
Incorrect gain adjustment is the most common cause. The gain control is not a volume knob. Its job is to match the amplifier input sensitivity to the voltage coming from the head unit or DSP. Turning it up does not create clean power. It only makes the amplifier reach its limit earlier.
A head unit can clip too. Factory radios, aftermarket head units and Android multimedia units all have a point where their pre-out signal stops being clean. If the source is distorted, setting the amp gain lower will not fix the source signal. This is why a proper tune starts by finding the clean maximum volume of the source unit, not by setting everything at full blast.
Other common causes include overusing bass boost, aggressive EQ settings, playing low-frequency tracks through speakers not designed for them, and wiring a load below the amp’s stable impedance. A mono amplifier rated stable to 2 ohms should not be asked to run 1 ohm unless the manufacturer specifically rates it for that load.
Vehicle voltage matters as well. A weak battery, poor alternator output, undersized power cable, loose fuse holder or poor chassis earth can make an amplifier starve for voltage under load. The amp may clip earlier than expected, shut down, or produce inconsistent output. This is especially relevant in 4WDs and utes with dual batteries, fridges, lighting and other accessories competing for electrical capacity.
Do not use the volume control as a fault finder
If distortion starts at volume 20, turning it down to 16 protects the speakers for now, but it does not identify the issue. Start with a quick, sensible inspection. Check that the amp is not buried under carpet or stored gear, that cooling vents are clear, and that no speaker wire is pinched against metal. Look for loose power, earth and RCA connections, particularly after rough tracks or recent work in the boot.
Then reset obvious tuning excess. Turn bass boost off, return EQ to flat or close to flat, and avoid loudness modes while testing. Set crossovers correctly: door speakers generally need a high-pass filter so deep bass is sent to the subwoofer instead of forcing small drivers beyond their travel. A subwoofer needs a suitable low-pass filter and should not be boosted below the enclosure and driver’s useful range.
If the sound is still rough, do not keep testing at high volume. A speaker voice coil can be partly burnt and still play, but it will rarely improve with more use.
Setting gains properly
The cleanest result comes from setting gains with the right test equipment. A digital multimeter can help establish a target AC voltage when used correctly, while an oscilloscope or distortion detector is better for confirming the point at which the head unit and amplifier begin clipping. A workshop can also set crossover points, time alignment and EQ as part of the same process, rather than treating gain as a standalone adjustment.
For a basic system, the process is straightforward in principle. Set the head unit EQ flat, disable bass boost and loudness, set the amplifier gain low, then establish the highest clean source volume using suitable test tones. From there, increase amplifier gain only until the amp reaches its clean target output. The final listening level should stay below the known clipping point.
There are trade-offs. A system tuned for maximum output may have less safety margin for different recordings, while a conservative tune gives cleaner sound and more speaker protection. Music is mastered at different levels, and a track that sounds fine one day can push the system harder the next.
When the problem needs workshop attention
Book the vehicle in if an amplifier repeatedly goes into protect, a speaker has stopped working, fuses keep blowing, wiring gets warm, or you can smell burnt insulation or voice coil varnish. These are not settings issues to ignore.
It is also worth getting professional help when you are mixing factory audio with aftermarket amps, adding a sub to a modern vehicle, or fitting a DSP. Factory systems can use unusual signal processing, active speakers and load-sensing circuits. The wrong integration method can create noise, poor output or faults that are harder to trace later.
Mr T Garage can assess the full system - source unit, signal path, amplifier, speakers, power wiring and vehicle charging voltage - rather than replacing parts based on a guess. That approach is usually cheaper than replacing a burnt subwoofer after the fact.
Clean, loud car audio is not about running every control at maximum. If your system starts sounding angry when you turn it up, treat it as useful feedback: turn it down, stop the damage, and get the setup sorted before the next drive costs you a set of speakers.
